GE600-DO INA


Country of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - GE600-DO INA
Category - Radial Spherical Plain Bearing
Weight (Kg) - 407.2
Inner Diameter Bearing (d) mm - 600
Outer Diameter Bearing (D) mm - 800
Width Inner Ring (B) mm - 272
Width Outer Ring (C) mm - 230
Ball Diameter (dk) mm - 700
Tilt Angle (a°) - 3.6
Minimum Edge Spacing (r1) mm - 2
Minimum Edge Spacing (r2) mm - 5

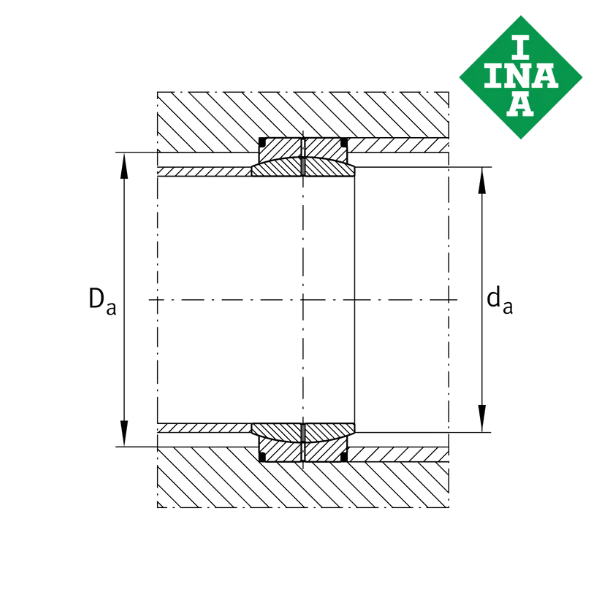

Maximum Connection Measure Inner Ring (da) mm - 644.9
Minimum Housing Connection Diameter (Da) mm - 667
Basic Dynamic Load Rating, Radial (Cr) kN - 14600
Basic Static Load Rating, Radial (C0r) kN - 73500
Radial Clearance (Gr) mm - 0.16 – 0.32
