Description
Brand - ZEN
Item Number - GE60-AW ZEN
Category - Axial Spherical Plain Bearings
Inner Diameter (d) mm - 60
Outer Diameter (D) mm - 150
Width (B) mm - 37
C (mm) - 33
d1 (mm) - 86
d2 (mm) - 140
d3 (mm) - 108
dk (mm) - 160
H (mm) - 45
S (mm) - 35
R1s (mm) - 1
R2s (mm) - 0.3
α - 7
Weight (kg) - 4.5
Dynamic Load Rating (N) - 1100000
Static Load Rating (N) - 2200000
Notes :
Maintenance-Free

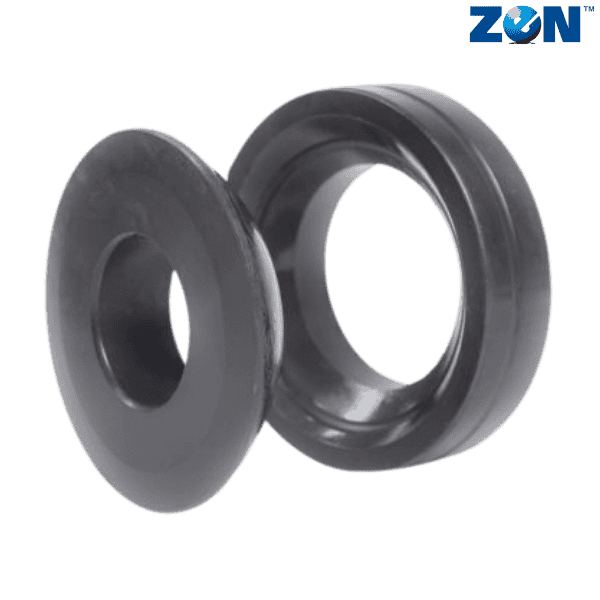

** Images are for representation purposes only
