GE480-DW INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - GE480-DW INA
Category - Radial Spherical Plain Bearing (Without Seals)
Weight (Kg) - 237
Inner Diameter (d) mm - 480
Outer Diameter (D) mm - 650
Inner Width (B) mm - 230
Outer Width (C) mm - 195
Ball Diameter (dk) mm - 565
Tilt Angle (a°) - 3.8
Minimum Edge Spacing (r1) mm - 2
Minimum Edge Spacing (r2) mm - 5

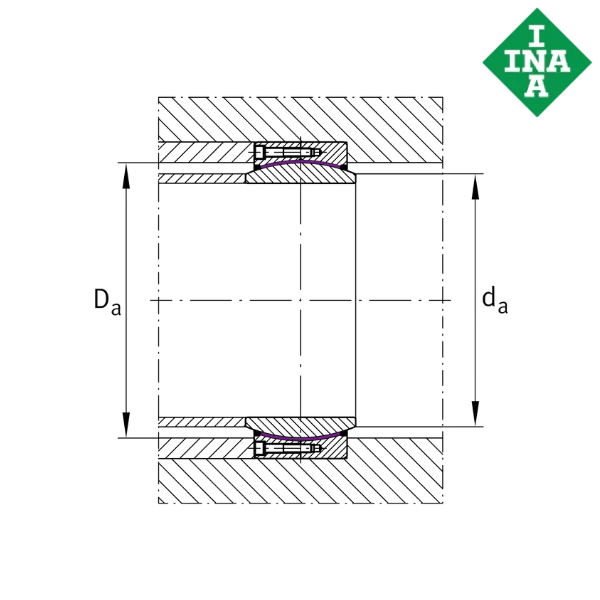

Maximum Connection Measure Inner Ring (da) mm - 516
Minimum Housing Connection Diameter (Da) mm - 536
Basic Dynamic Load Rating, Radial (Cr) kN - 33050
Basic Static Load Rating, Radial (C0r) kN - 55080
Radial Clearance (Gr) mm - 0 – 0.145
