Description
Brand - ZEN
Item Number - GE45-AX ZEN

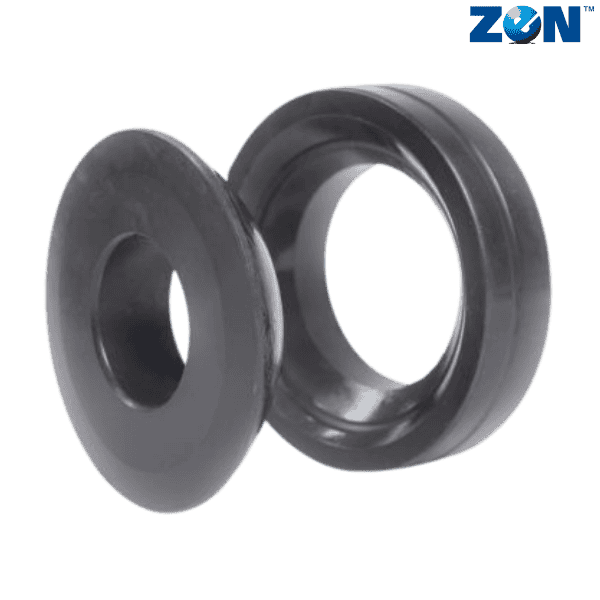

Category - Axial Spherical Plain Bearings
d (mm) - 45
D (mm) - 120
H (mm) - 36.5
dk (mm) - 130
d1 (mm) - 68
d2 (mm) - 112
d3 (mm) - 89
B (mm) - 31
C (mm) - 25
S (mm) - 27.5
A (mm) - 11
R1s (mm) - 1
R2s (mm) - 0.3
α - 6
Weight (kg) - 2.4
Dynamic Load Rating (N) - 437400
Static Laod Rating (N) - 2187000
Notes :
Requiring Maintenance
** Images are for representation purposes only
