Description
Brand - ZEN
Item Number - GE30-FW-2RS ZEN
Category - Radial Spherical Plain Bearings
Inner Diameter (d) mm - 30
Outer Diameter (D) mm - 55
Width (B) mm - 32
C (mm) - 20
dk (mm) - 47
R1s (mm) - 0.6
R2s (mm) - 1
α - 17
Weight (kg) - 0.29
Dynamic Load Rating (N) - 190800
Static Load Rating (N) - 317700
Notes :
2RS - Rubber Seals
Maintenance-Free

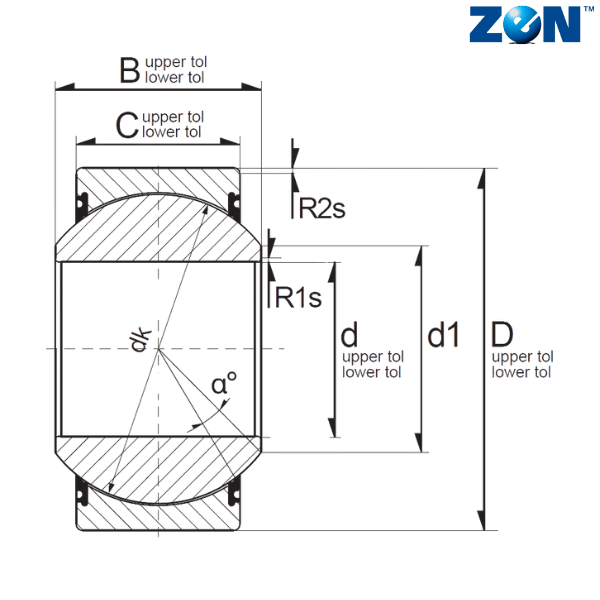

** Images are for representation purposes only
