GE280-AW INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - GE280-AW INA
Category - Radial Spherical Plain Bearing
Weight (Kg) - 84.1
Inner Diameter (d) mm - 280
Outer Diameter (D) mm - 460
Height (T) mm - 110
Ball Diameter (dk) mm - 480
Outer Eye Diameter (d2) mm - 445
Front Surface Diameter of Shaft Washer (d3) mm - 366
Bore Diameter of Housing Washer (D1) mm - 337
Inner Width (B) mm - 100
Outer Width (C) mm - 85
Plane Surface Spacing (s) mm - 80
Tilt Angle (a°) - 4
Minimum Edge Spacing (r1) mm - 3
Minimum Edge Spacing (r2) mm - 1

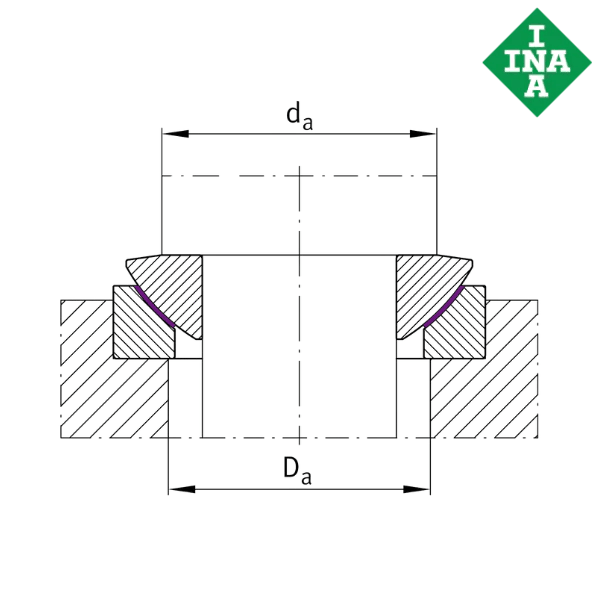

Maximum Connection Measure Inner Ring (da) mm - 366
Minimum Housing Connection Diameter (Da) mm - 355
Basic Dynamic Load Rating, Axial (Ca) kN - 17130
Basic Static Load Rating, Axial (C0a) kN - 28560

** Images are for representation purposes only
