GE260-FW-2RS INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - GE260-FW-2RS INA
Category - Radial Spherical Plain Bearing
Weight (Kg) - 81.7
Inner Diameter (d) mm - 260
Outer Diameter (D) mm - 400
Inner Width (B) mm - 205
Outer Width (C) mm - 120
Ball Diameter (dk) mm - 350
Tilt Angle (a°) - 15
Minimum Edge Spacing (r1,r2) mm - 1.1

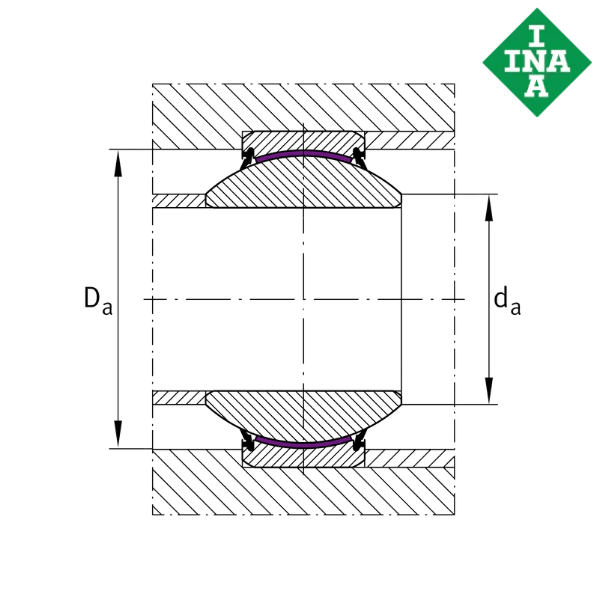

Maximum Connection Measure Inner Ring (da) mm - 283.6
Minimum Housing Connection Diameter (Da) mm - 342
Basic Dynamic Load Rating, Radial (Cr) kN - 10050
Basic Static Load Rating, Radial (C0r) kN - 16750
Radial Clearance (Gr) mm - 0 – 0.125

** Images are for representation purposes only
