GE240-FO-2RS INA


Country of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - GE240-FO-2RS INA
Category - Radial Spherical Plain Bearing
Weight (Kg) - 64.9
Inner Diameter Bearing (d) mm - 240
Outer Diameter Bearing (D) mm - 370
Width Inner Ring (B) mm - 190
Width Outer Ring (C) mm - 110
Ball Diameter (dk) mm - 325
Tilt Angle (a°) - 15
Minimum Edge Spacing (r1,r2) mm - 1.1
Maximum Connection Measure Inner Ring (da) mm - 263.6
Minimum Housing Connection Diameter (Da) mm - 319
Basic Dynamic Load Rating, Radial (Cr) kN - 3050
Basic Static Load Rating, Radial (C0r) kN - 15300
Radial Clearance (Gr) mm - 0.125 – 0.239

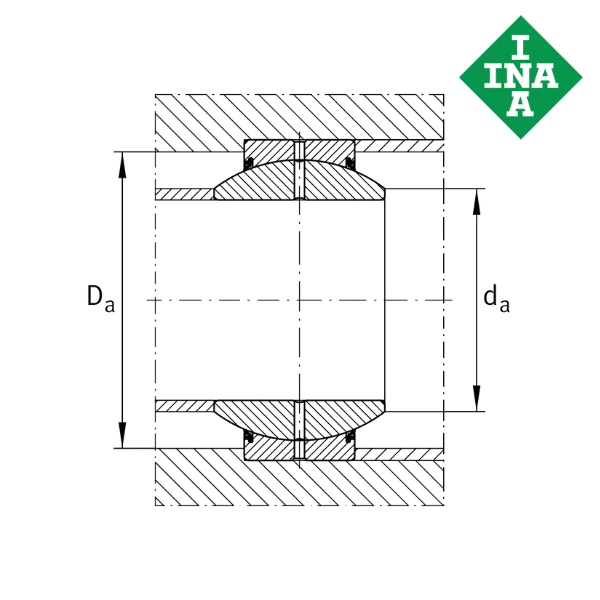

** Images are for representation purposes only
