GE220-FW-2RS INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - GE220-FW-2RS INA
Category - Radial Spherical Plain Bearing
Weight (Kg) - 50.9
Inner Diameter (d) mm - 220
Outer Diameter (D) mm - 340
Inner Width (B) mm - 175
Outer Width (C) mm - 100
Ball Diameter (dk) mm - 300
Tilt Angle (a°) - 16
Minimum Edge Spacing (r1,r2) mm - 1.1

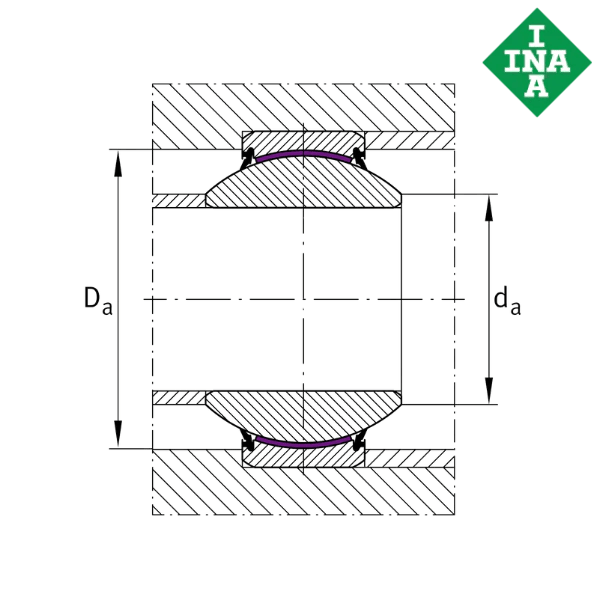

Maximum Connection Measure Inner Ring (da) mm - 243.6
Minimum Housing Connection Diameter (Da) mm - 295
Basic Dynamic Load Rating, Radial (Cr) kN - 7200
Basic Static Load Rating, Radial (C0r) kN - 12000
Radial Clearance (Gr) mm - 0 – 0.11

** Images are for representation purposes only
