GE 8G IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - GE 8G IKO
Also Known As - GE8G
Category - Steel-on-Steel Spherical Bushing
Shaft Diameter (mm) - 8
Bore Diameter (d) mm - 8
Outer Diameter (D) mm - 19
Width (B) mm - 11
Boundary Dimension (C) mm - 6
Boundary Dimension (dk) mm - 16
Minimum Boundary Dimension (rs) mm - 0.3
Minimum Boundary Dimension (r2s) mm - 0.3
Permissible Tilting Angle Degree (α) - 21

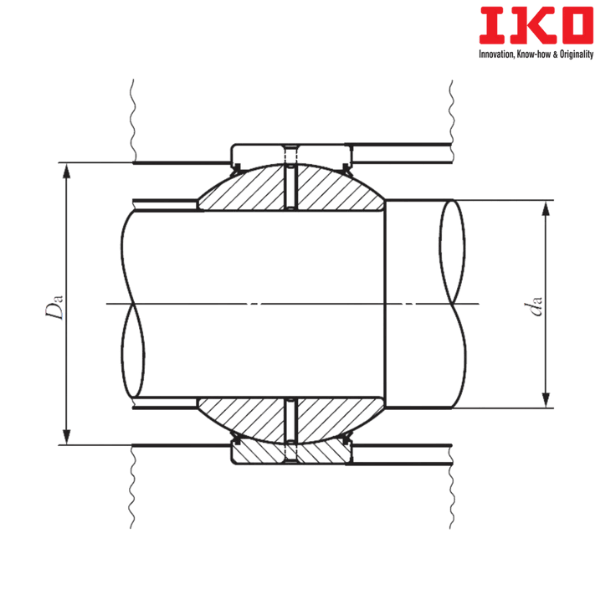

Minimum Mounting Dimension (da) mm - 10.5
Maximum Mounting Dimension (da) mm - 11.5
Maximum Mounting Dimension (Da) mm - 16.5
Minimum Mounting Dimension (Da) mm - 15.5
Dynamic Load Capacity (Cd) N - 9410
Static Load Capacity (Cs) N - 56500
Weight (kg) - 0.015

Suffix Description Description :
G - Steel-on-Steel and Oil Holes and Grooves
