Description
Brand - RBC
Item Number - GE 80 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 80 mm
Outer Diameter (D) - 120 mm
Width (B) - 55 mm
Dimension (C) - 45 mm
Dimension (dk) - 105 mm
Minimum Dimension (R1) - 1 mm
Minimum Dimension (R2) - 1 mm

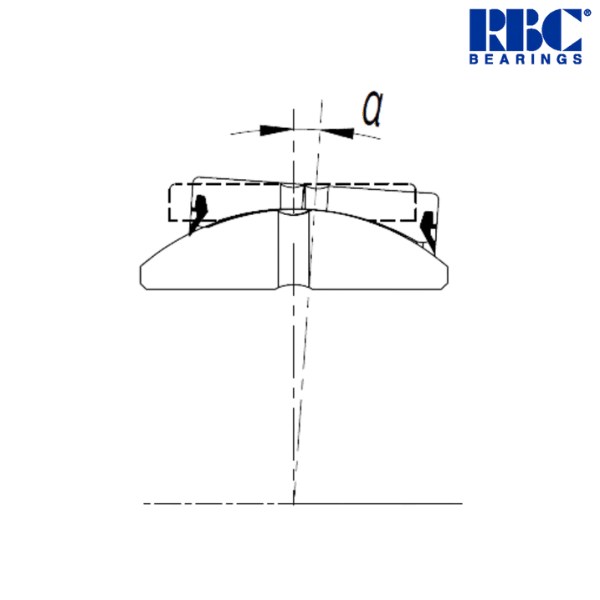

Dimension (a) - 6 mm
Basic Dynamic Load Rating (C) - 400 kN
Basic Static Load Rating (C0) - 2000 kN
Weight - 2.200 kg
Spherical Plain Bearing without Seals - GE 80 MB

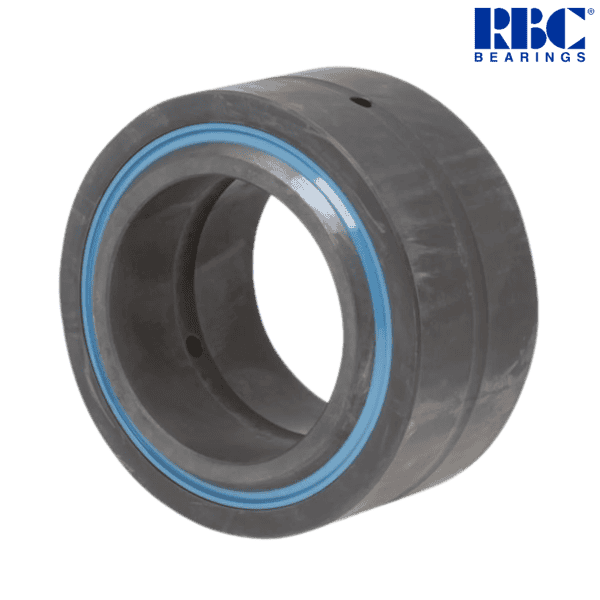

♦ ♦ Images are for representation purposes only
Item Number - GE 80 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 80 mm
Outer Diameter (D) - 120 mm
Width (B) - 55 mm
Dimension (C) - 45 mm
Dimension (dk) - 105 mm
Minimum Dimension (R1) - 1 mm
Minimum Dimension (R2) - 1 mm
Dimension (a) - 6 mm
Basic Dynamic Load Rating (C) - 400 kN
Basic Static Load Rating (C0) - 2000 kN
Weight - 2.200 kg
Spherical Plain Bearing without Seals - GE 80 MB
♦ ♦ Images are for representation purposes only
