Description
Brand - IKO
Item Number - GE 70GS IKO
Also Known As - GE70GS
Category - Steel-on-Steel Spherical Bushing
Shaft Diameter (mm) - 70
Bore Diameter (d) mm - 70
Outer Diameter (D) mm - 120
Width (B) mm - 70
Boundary Dimension (C) mm - 45
Boundary Dimension (dk) mm - 105
Minimum Boundary Dimension (rs) mm - 1
Minimum Boundary Dimension (r2s) mm - 1
Permissible Tilting Angle Degree (α) - 16
Permissible Tilting Angle Degree (α1) - 14

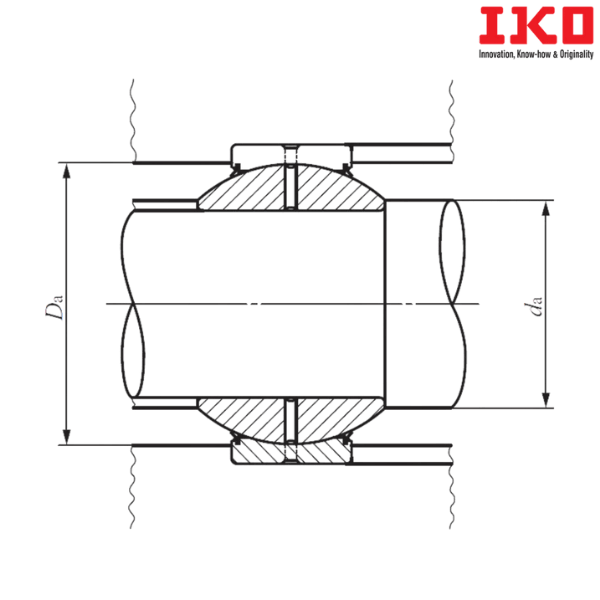

Minimum Mounting Dimension (da) mm - 75.5
Maximum Mounting Dimension (da) mm - 78
Maximum Mounting Dimension (Da) mm - 114.5
Minimum Mounting Dimension (Da) mm - 103
Dynamic Load Capacity (Cd) N - 463000
Static Load Capacity (Cs) N - 2780000
Weight (kg) - 3.00
Spherical Plain Bearing with Seals - GE 70GS-2RS
** Images are for representation purposes only
