Description
Brand - IKO
Item Number - GE 70ES-2RS IKO
Also Known As - GE70ES-2RS
Category - Steel-on-Steel Spherical Bushing
Shaft Diameter (mm) - 70
Bore Diameter (d) mm - 70
Outer Diameter (D) mm - 105
Width (B) mm - 49
Boundary Dimension (C) mm - 40
Boundary Dimension (dk) mm - 92
Minimum Boundary Dimension (rs) mm - 1
Minimum Boundary Dimension (r2s) mm - 1
Permissible Tilting Angle Degree (α) - 6
Permissible Tilting Angle Degree (α1) - 4

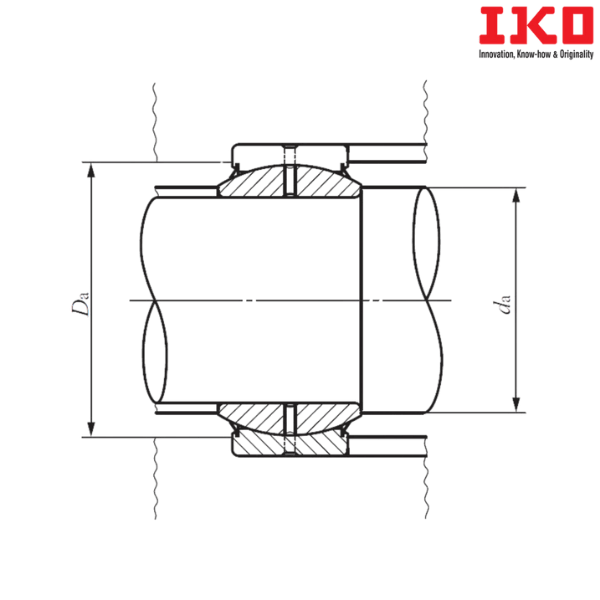

Minimum Mounting Dimension (da) mm - 75.5
Maximum Mounting Dimension (da) mm - 77.5
Maximum Mounting Dimension (Da) mm - 99.5
Minimum Mounting Dimension (Da) mm - 91
Dynamic Load Capacity (Cd) N - 361000
Static Load Capacity (Cs) N - 2170000
Weight (kg) - 1.54
Spherical Plain Bearing without Seals - GE 70ES
Suffix Description Description :
ES - Split Outer Ring with Lubrication Holes
** Images are for representation purposes only
