Description
Brand - IKO
Item Number - GE 50GS IKO
Also Known As - GE50GS
Category - Steel-on-Steel Spherical Bushing
Shaft Diameter (mm) - 50
Bore Diameter (d) mm - 50
Outer Diameter (D) mm - 90
Width (B) mm - 56
Boundary Dimension (C) mm - 36
Boundary Dimension (dk) mm - 80
Minimum Boundary Dimension (rs) mm - 0.6
Minimum Boundary Dimension (r2s) mm - 1
Permissible Tilting Angle Degree (α) - 17
Permissible Tilting Angle Degree (α1) - 16

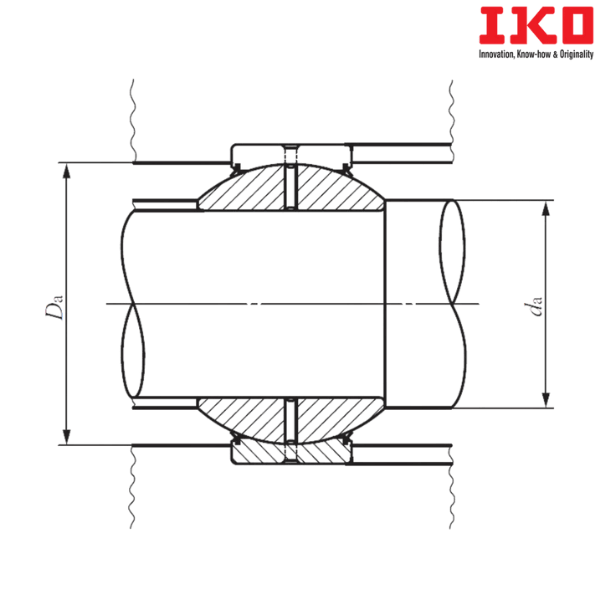

Minimum Mounting Dimension (da) mm - 54.5
Maximum Mounting Dimension (da) mm - 57
Maximum Mounting Dimension (Da) mm - 84.5
Minimum Mounting Dimension (Da) mm - 79
Dynamic Load Capacity (Cd) N - 282000
Static Load Capacity (Cs) N - 1690000
Weight (kg) - 1.50
Spherical Plain Bearing with Seals - GE 50GS-2RS
** Images are for representation purposes only
