Description

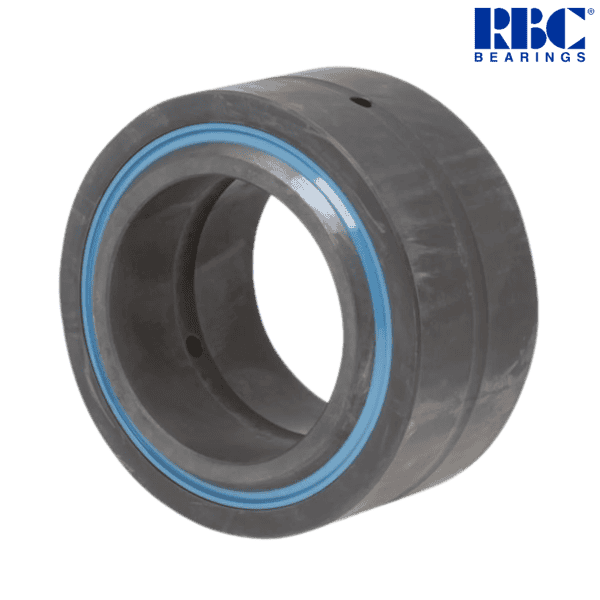

Brand - RBC
Item Number - GE 50 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 50 mm
Outer Diameter (D) - 75 mm
Width (B) - 35 mm
Dimension (C) - 28 mm
Dimension (dk) - 66 mm
Minimum Dimension (R1) - 0.6 mm
Minimum Dimension (R2) - 1 mm

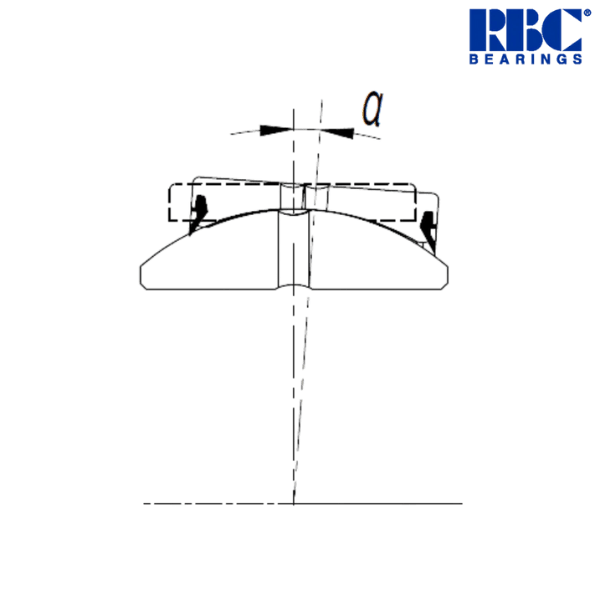

Dimension (a) - 6 mm
Basic Dynamic Load Rating (C) - 156 kN
Basic Static Load Rating (C0) - 780 kN
Weight - 0.530 kg
Spherical Plain Bearing without Seals - GE 50 MB
♦ ♦ Images are for representation purposes only
Item Number - GE 50 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 50 mm
Outer Diameter (D) - 75 mm
Width (B) - 35 mm
Dimension (C) - 28 mm
Dimension (dk) - 66 mm
Minimum Dimension (R1) - 0.6 mm
Minimum Dimension (R2) - 1 mm
Dimension (a) - 6 mm
Basic Dynamic Load Rating (C) - 156 kN
Basic Static Load Rating (C0) - 780 kN
Weight - 0.530 kg
Spherical Plain Bearing without Seals - GE 50 MB
♦ ♦ Images are for representation purposes only
