GE 4E IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - GE 4E IKO
Also Known As - GE4E
Category - Steel-on-Steel Spherical Bushing
Shaft Diameter (mm) - 4
Bore Diameter (d) mm - 4
Outer Diameter (D) mm - 12
Width (B) mm - 5
Boundary Dimension (C) mm - 3
Boundary Dimension (dk) mm - 8
Minimum Boundary Dimension (rs) mm - 0.3
Minimum Boundary Dimension (r2s) mm - 0.3
Permissible Tilting Angle Degree (α) - 16

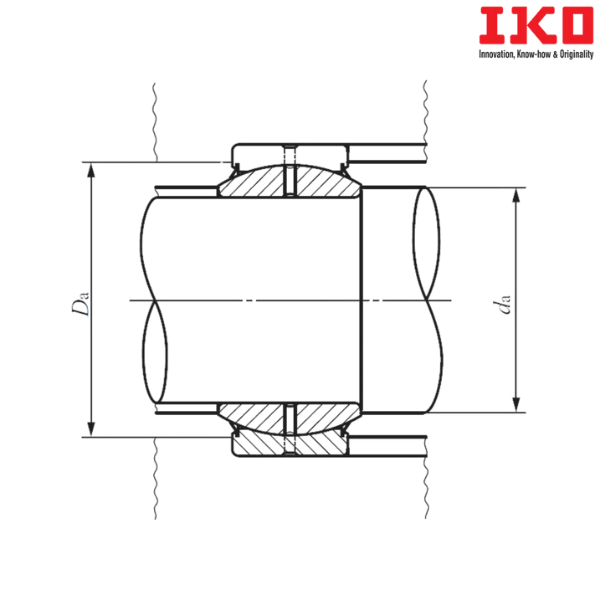

Minimum Mounting Dimension (da) mm - 6
Maximum Mounting Dimension (da) mm - 6
Maximum Mounting Dimension (Da) mm - 9.5
Minimum Mounting Dimension (Da) mm - 8
Dynamic Load Capacity (Cd) N - 2350
Static Load Capacity (Cs) N - 14100
Weight (kg) - 0.003

Suffix Description Description :
E - Split Outer Ring without Lubrication Holes

** Images are for representation purposes only
