GE 45GS-2RS IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - GE 45GS-2RS IKO
Also Known As - GE45GS-2RS
Category - Steel-on-Steel Spherical Bushing
Shaft Diameter (mm) - 45
Bore Diameter (d) mm - 45
Outer Diameter (D) mm - 75
Width (B) mm - 43
Boundary Dimension (C) mm - 28
Boundary Dimension (dk) mm - 66
Minimum Boundary Dimension (rs) mm - 0.6
Minimum Boundary Dimension (r2s) mm - 1
Permissible Tilting Angle Degree (α) - 15
Permissible Tilting Angle Degree (α1) - 13
Minimum Mounting Dimension (da) mm - 49.5
Maximum Mounting Dimension (da) mm - 50
Maximum Mounting Dimension (Da) mm - 69.5
Minimum Mounting Dimension (Da) mm - 66
Dynamic Load Capacity (Cd) N - 181000
Static Load Capacity (Cs) N - 1090000
Weight (kg) - 0.660
Spherical Plain Bearing without Seals - GE 45GS

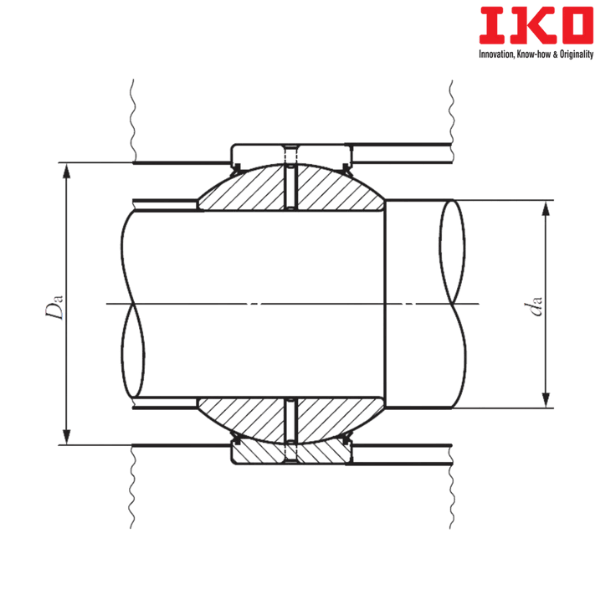

** Images are for representation purposes only
