GE 40ES IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Item Number - GE 40ES IKO
Also Known As - GE40ES
Category - Steel-on-Steel Spherical Bushing
Shaft Diameter (mm) - 40
Bore Diameter (d) mm - 40
Outer Diameter (D) mm - 62
Width (B) mm - 28
Boundary Dimension (C) mm - 22
Boundary Dimension (dk) mm - 53
Minimum Boundary Dimension (rs) mm - 0.6
Minimum Boundary Dimension (r2s) mm - 1
Permissible Tilting Angle Degree (α) - 7
Permissible Tilting Angle Degree (α1) - 4

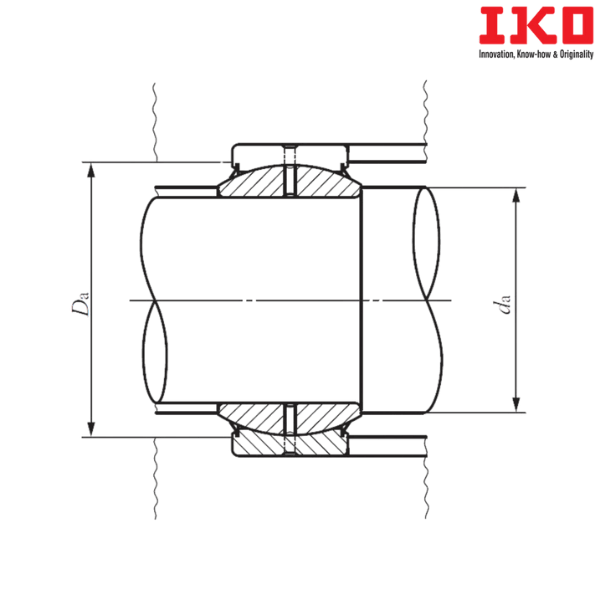

Minimum Mounting Dimension (da) mm - 44.5
Maximum Mounting Dimension (da) mm - 45
Maximum Mounting Dimension (Da) mm - 56.5
Minimum Mounting Dimension (Da) mm - 54.5
Dynamic Load Capacity (Cd) N - 114000
Static Load Capacity (Cs) N - 686000
Weight (kg) - 0.315
Spherical Plain Bearing with Seals - GE 40ES-2RS

Suffix Description Description :
ES - Split Outer Ring with Lubrication Holes

** Images are for representation purposes only
