Description
Brand - RBC
Item Number - GE 40 MB RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - No Seal
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 40 mm
Outer Diameter (D) - 62 mm
Width (B) - 28 mm
Dimension (C) - 22 mm
Dimension (dk) - 53 mm
Minimum Dimension (R1) - 0.6 mm
Minimum Dimension (R2) - 1 mm
Dimension (a) - 7 mm
Basic Dynamic Load Rating (C) - 100 kN
Basic Static Load Rating (C0) - 500 kN
Weight - 0.300 kg
Spherical Plain Bearing with Seals - GE 40 MB-2RS

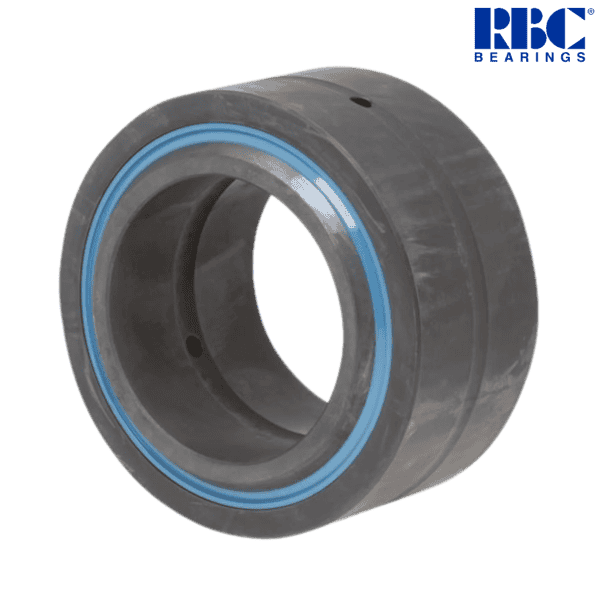

♦ ♦ Images are for representation purposes only
Item Number - GE 40 MB RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - No Seal
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 40 mm
Outer Diameter (D) - 62 mm
Width (B) - 28 mm
Dimension (C) - 22 mm
Dimension (dk) - 53 mm
Minimum Dimension (R1) - 0.6 mm
Minimum Dimension (R2) - 1 mm
Dimension (a) - 7 mm
Basic Dynamic Load Rating (C) - 100 kN
Basic Static Load Rating (C0) - 500 kN
Weight - 0.300 kg
Spherical Plain Bearing with Seals - GE 40 MB-2RS
♦ ♦ Images are for representation purposes only
