Description
Brand - IKO
Item Number - GE 35ES-2RS IKO
Also Known As - GE35ES-2RS
Category - Steel-on-Steel Spherical Bushing
Shaft Diameter (mm) - 35
Bore Diameter (d) mm - 35
Outer Diameter (D) mm - 55
Width (B) mm - 25
Boundary Dimension (C) mm - 20
Boundary Dimension (dk) mm - 47
Minimum Boundary Dimension (rs) mm - 0.6
Minimum Boundary Dimension (r2s) mm - 1
Permissible Tilting Angle Degree (α) - 6
Permissible Tilting Angle Degree (α1) - 4

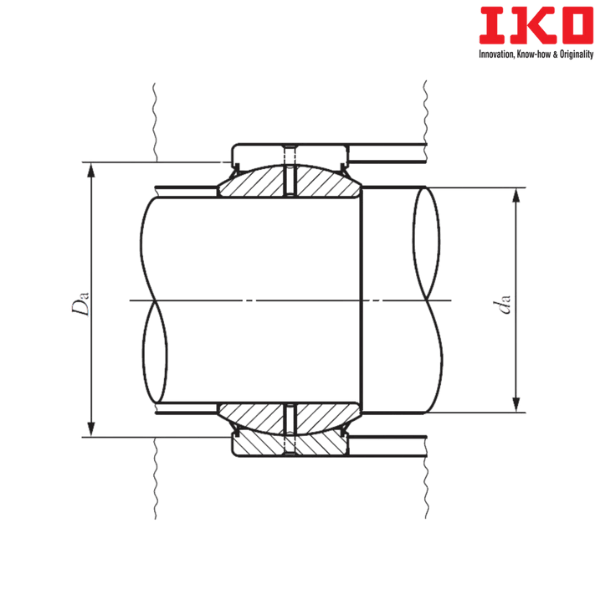

Minimum Mounting Dimension (da) mm - 39.5
Maximum Mounting Dimension (da) mm - 39.5
Maximum Mounting Dimension (Da) mm - 49.5
Minimum Mounting Dimension (Da) mm - 48
Dynamic Load Capacity (Cd) N - 92200
Static Load Capacity (Cs) N - 553000
Weight (kg) - 0.258
Spherical Plain Bearing without Seals - GE 35ES
Suffix Description Description :
ES - Split Outer Ring with Lubrication Holes
** Images are for representation purposes only
