GE 35EC-2RS IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Item Number - GE 35EC-2RS IKO
Also Known As - GE35EC-2RS
Category - Maintenance-Free Spherical Bushings
Shaft Diameter (mm) - 35
Bore Diameter (d) mm - 35
Outer Diameter (D) mm - 55
Width (B) mm - 25

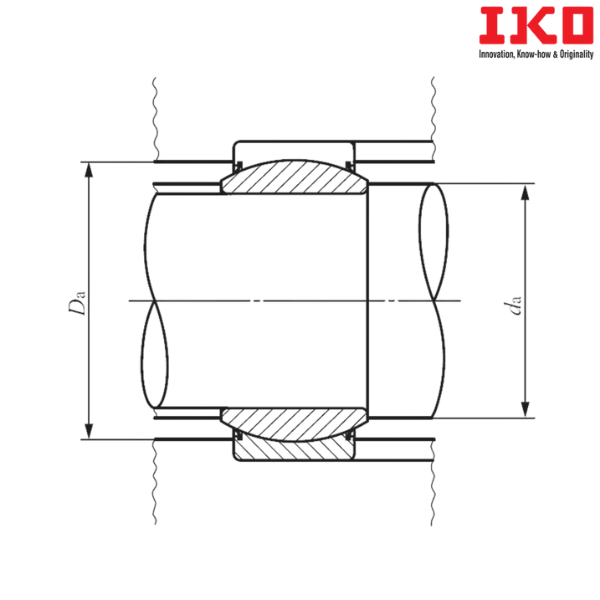

Boundary Dimension (C) mm - 20
Boundary Dimension (dk) mm - 47
Minimum Boundary Dimension (rs) mm - 0.6
Minimum Boundary Dimension (r2s) mm - 1
Minimum Mounting Dimension (da) mm - 39.5
Maximum Mounting Dimension (da) mm - 39.5
Maximum Mounting Dimension (Da) mm - 49.5
Minimum Mounting Dimension (Da) mm - 48
Dynamic Load Capacity (Cd) N - 92200
Static Load Capacity (Cs) N - 230000
Weight (kg) - 0.258

** Images are for representation purposes only
