Description
Brand - RBC
Item Number - GE 280 MB RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - No Seal
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 280 mm
Outer Diameter (D) - 400 mm
Width (B) - 155 mm
Dimension (C) - 120 mm
Dimension (dk) - 350 mm
Minimum Dimension (R1) - 1.1 mm
Minimum Dimension (R2) - 1.1 mm
Dimension (a) - 6 mm
Basic Dynamic Load Rating (C) - 3570 kN
Basic Static Load Rating (C0) - 17850 kN
Weight - 65.060 kg
Spherical Plain Bearing with Seals - GE 280 MB-2RS

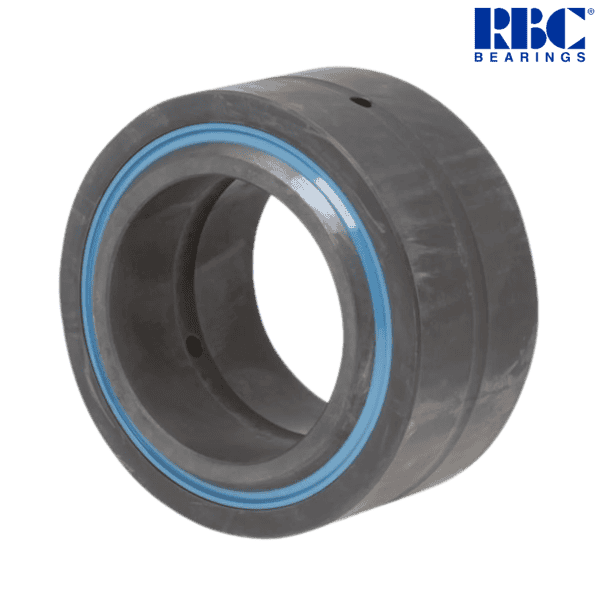

♦ ♦ Images are for representation purposes only
Item Number - GE 280 MB RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - No Seal
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 280 mm
Outer Diameter (D) - 400 mm
Width (B) - 155 mm
Dimension (C) - 120 mm
Dimension (dk) - 350 mm
Minimum Dimension (R1) - 1.1 mm
Minimum Dimension (R2) - 1.1 mm
Dimension (a) - 6 mm
Basic Dynamic Load Rating (C) - 3570 kN
Basic Static Load Rating (C0) - 17850 kN
Weight - 65.060 kg
Spherical Plain Bearing with Seals - GE 280 MB-2RS
♦ ♦ Images are for representation purposes only
