Description
Brand - RBC
Item Number - GE 260 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Bore Diameter (d) mm - 260
Outer Diameter (D) mm - 370
Width (B) mm - 150
Dimension (C) mm - 110
Dimension (dk) mm - 325
Minimum Dimension (R1) mm - 1.1
Minimum Dimension (R2) mm - 1.1

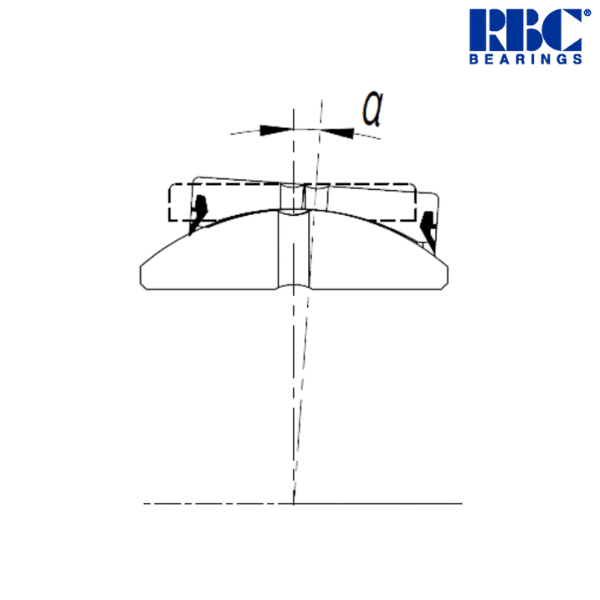

Dimension (a) mm - 7
Basic Dynamic Load Rating (C) kN - 3030
Basic Static Load Rating (C0) kN - 15190
Weight (kg) - 51.540
Spherical Plain Bearing without Seals - GE 260 MB
** Images are for representation purposes only
