Description
Brand - IKO
Item Number - GE 25GS IKO
Also Known As - GE25GS
Category - Steel-on-Steel Spherical Bushing
Shaft Diameter (mm) - 25
Bore Diameter (d) mm - 25
Outer Diameter (D) mm - 47
Width (B) mm - 28
Boundary Dimension (C) mm - 18
Boundary Dimension (dk) mm - 40.7
Minimum Boundary Dimension (rs) mm - 0.6
Minimum Boundary Dimension (r2s) mm - 0.6
Permissible Tilting Angle Degree (α) - 17
Permissible Tilting Angle Degree (α1) - 15

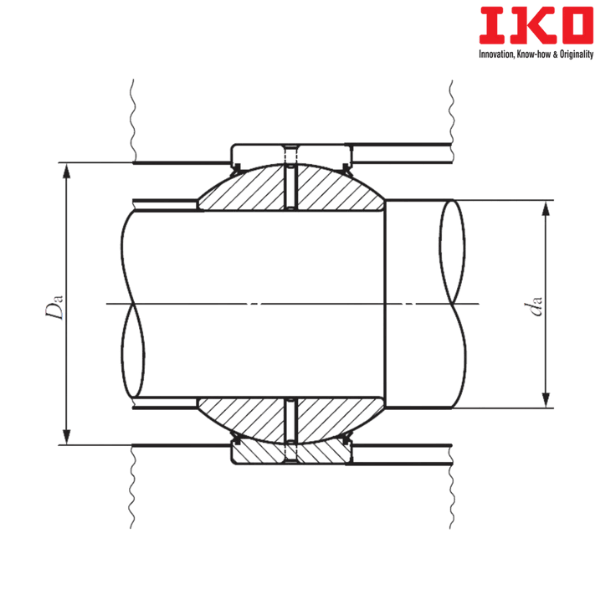

Minimum Mounting Dimension (da) mm - 29.5
Maximum Mounting Dimension (da) mm - 29.5
Maximum Mounting Dimension (Da) mm - 42.5
Minimum Mounting Dimension (Da) mm - 41.5
Dynamic Load Capacity (Cd) N - 71800
Static Load Capacity (Cs) N - 431000
Weight (kg) - 0.215
Spherical Plain Bearing with Seals - GE 25GS-2RS
** Images are for representation purposes only
