Description
Brand - IKO
Item Number - GE 220ES-2RS IKO
Also Known As - GE220ES-2RS
Category - Steel-on-Steel Spherical Bushing
Shaft Diameter (mm) - 220
Bore Diameter (d) mm - 220
Outer Diameter (D) mm - 320
Width (B) mm - 135
Boundary Dimension (C) mm - 100
Boundary Dimension (dk) mm - 275
Minimum Boundary Dimension (rs) mm - 1.1
Minimum Boundary Dimension (r2s) mm - 1.1
Permissible Tilting Angle Degree (α) - 8
Permissible Tilting Angle Degree (α1) - 6

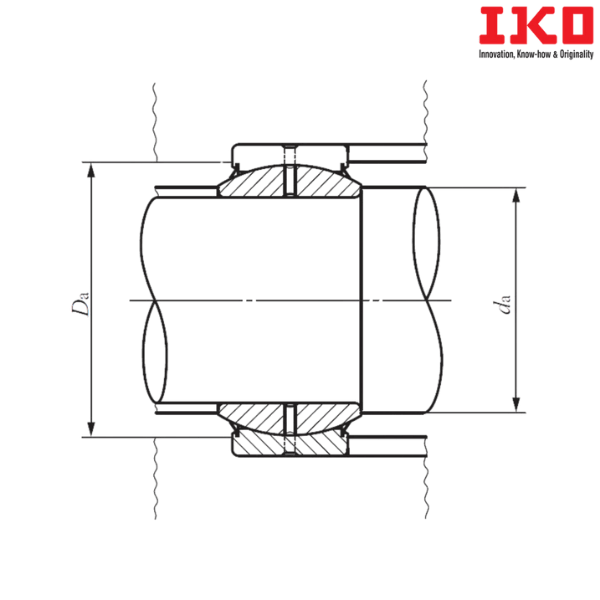

Minimum Mounting Dimension (da) mm - 227
Maximum Mounting Dimension (da) mm - 239.5
Maximum Mounting Dimension (Da) mm - 313
Minimum Mounting Dimension (Da) mm - 269
Dynamic Load Capacity (Cd) N - 2700000
Static Load Capacity (Cs) N - 16200000
Weight (kg) - 36.1
Spherical Plain Bearing without Seals - GE 220ES
Suffix Description Description :
ES - Split Outer Ring with Lubrication Holes
** Images are for representation purposes only
