Description
Brand - RBC
Item Number - GE 220 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 220 mm
Outer Diameter (D) - 320 mm
Width (B) - 135 mm
Dimension (C) - 100 mm
Dimension (dk) - 275 mm
Minimum Dimension (R1) - 1.1 mm
Minimum Dimension (R2) - 1.1 mm

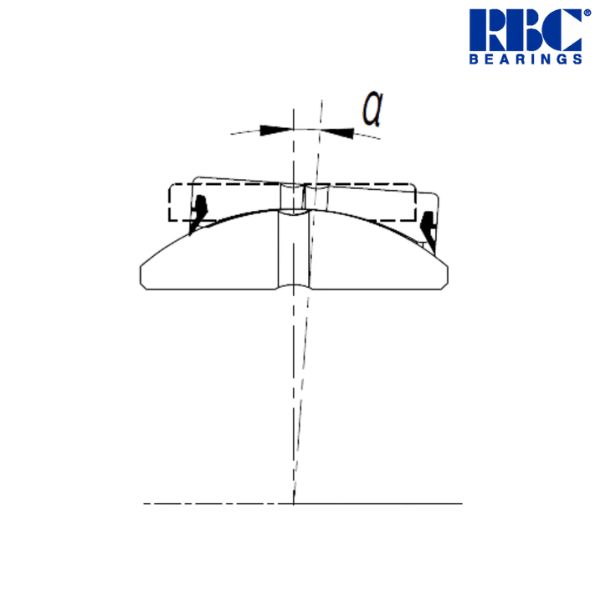

Dimension (a) - 8 mm
Basic Dynamic Load Rating (C) - 2320 kN
Basic Static Load Rating (C0) - 11600 kN
Weight - 35.510 kg
Spherical Plain Bearing without Seals - GE 220 MB

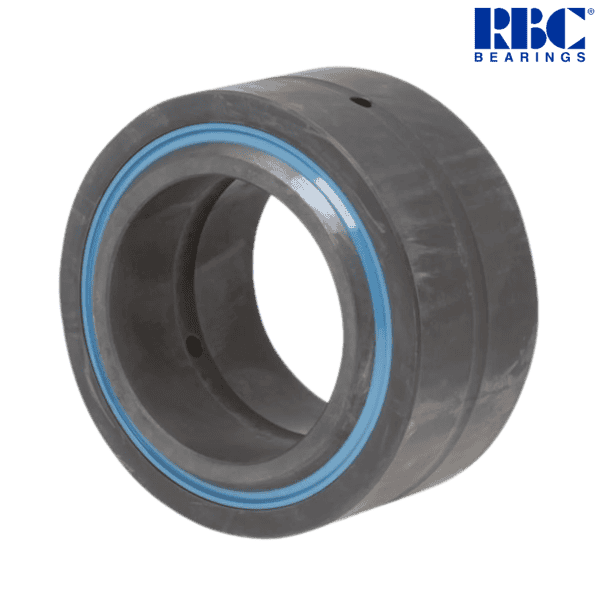

♦ ♦ Images are for representation purposes only
Item Number - GE 220 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 220 mm
Outer Diameter (D) - 320 mm
Width (B) - 135 mm
Dimension (C) - 100 mm
Dimension (dk) - 275 mm
Minimum Dimension (R1) - 1.1 mm
Minimum Dimension (R2) - 1.1 mm
Dimension (a) - 8 mm
Basic Dynamic Load Rating (C) - 2320 kN
Basic Static Load Rating (C0) - 11600 kN
Weight - 35.510 kg
Spherical Plain Bearing without Seals - GE 220 MB
♦ ♦ Images are for representation purposes only
