Description
Brand - IKO
Item Number - GE 20GS IKO
Also Known As - GE20GS
Category - Steel-on-Steel Spherical Bushing
Shaft Diameter (mm) - 20
Bore Diameter (d) mm - 20
Outer Diameter (D) mm - 42
Width (B) mm - 25
Boundary Dimension (C) mm - 16
Boundary Dimension (dk) mm - 35.5
Minimum Boundary Dimension (rs) mm - 0.3
Minimum Boundary Dimension (r2s) mm - 0.6
Permissible Tilting Angle Degree (α) - 17
Permissible Tilting Angle Degree (α1) - 16

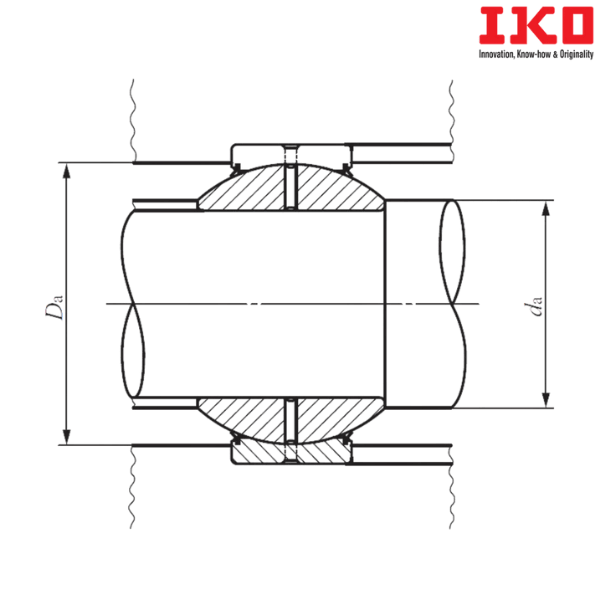

Minimum Mounting Dimension (da) mm - 22.5
Maximum Mounting Dimension (da) mm - 25
Maximum Mounting Dimension (Da) mm - 37.5
Minimum Mounting Dimension (Da) mm - 37
Dynamic Load Capacity (Cd) N - 55700
Static Load Capacity (Cs) N - 334000
Weight (kg) - 0.155
Spherical Plain Bearing with Seals - GE 20GS-2RS
** Images are for representation purposes only
