GE 200ES-2RS IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - GE 200ES-2RS IKO
Also Known As - GE200ES-2RS
Category - Steel-on-Steel Spherical Bushing
Shaft Diameter (mm) - 200
Bore Diameter (d) mm - 200
Outer Diameter (D) mm - 290
Width (B) mm - 130
Boundary Dimension (C) mm - 100
Boundary Dimension (dk) mm - 250
Minimum Boundary Dimension (rs) mm - 1.1
Minimum Boundary Dimension (r2s) mm - 1.1
Permissible Tilting Angle Degree (α) - 7
Permissible Tilting Angle Degree (α1) - 6

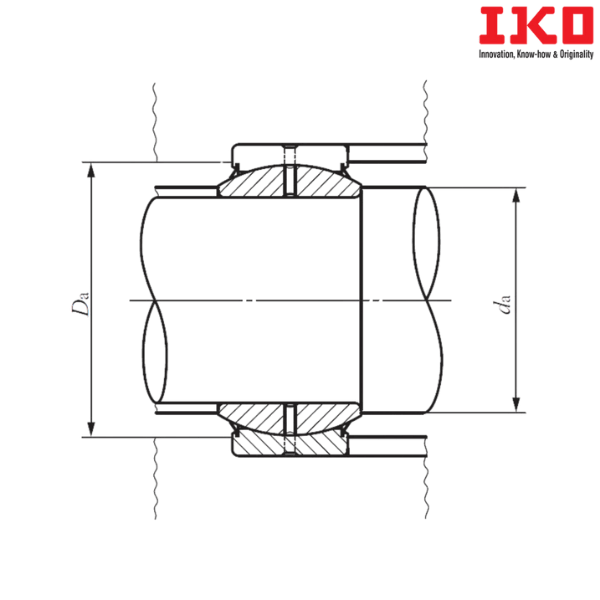

Minimum Mounting Dimension (da) mm - 207
Maximum Mounting Dimension (da) mm - 213.5
Maximum Mounting Dimension (Da) mm - 283
Minimum Mounting Dimension (Da) mm - 244
Dynamic Load Capacity (Cd) N - 2450000
Static Load Capacity (Cs) N - 14700000
Weight (kg) - 28.1
Spherical Plain Bearing without Seals - GE 200ES

Suffix Description Description :
ES - Split Outer Ring with Lubrication Holes

** Images are for representation purposes only
