GE 180ES IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - GE 180ES IKO
Also Known As - GE180ES
Category - Steel-on-Steel Spherical Bushing
Shaft Diameter (mm) - 180
Bore Diameter (d) mm - 180
Outer Diameter (D) mm - 260
Width (B) mm - 105
Boundary Dimension (C) mm - 80
Boundary Dimension (dk) mm - 225
Minimum Boundary Dimension (rs) mm - 1.1
Minimum Boundary Dimension (r2s) mm - 1.1
Permissible Tilting Angle Degree (α) - 6
Permissible Tilting Angle Degree (α1) - 5

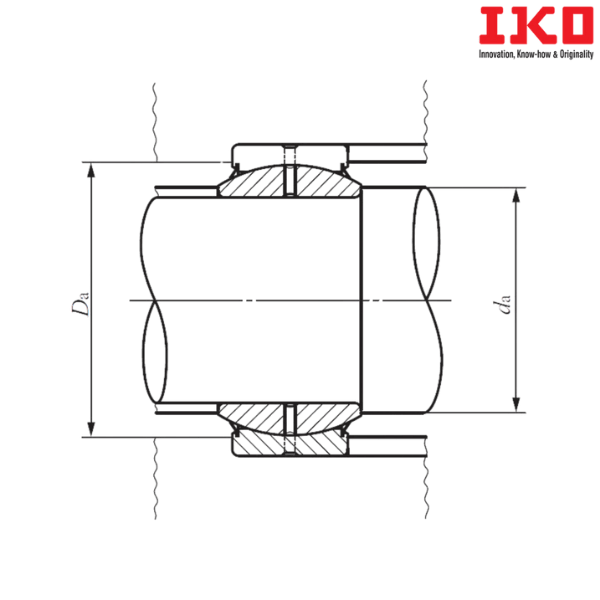

Minimum Mounting Dimension (da) mm - 187
Maximum Mounting Dimension (da) mm - 199
Maximum Mounting Dimension (Da) mm - 253
Minimum Mounting Dimension (Da) mm - 221
Dynamic Load Capacity (Cd) N - 1770000
Static Load Capacity (Cs) N - 10600000
Weight (kg) - 18.9
Spherical Plain Bearing with Seals - GE 180ES-2RS

Suffix Description Description :
ES - Split Outer Ring with Lubrication Holes

** Images are for representation purposes only
