GE 17EC IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Item Number - GE 17EC IKO
Also Known As - GE17EC
Category - Maintenance-Free Spherical Bushings
Shaft Diameter (mm) - 17
Bore Diameter (d) mm - 17
Outer Diameter (D) mm - 30
Width (B) mm - 14
Boundary Dimension (C) mm - 10
Boundary Dimension (dk) mm - 25
Minimum Boundary Dimension (rs) mm - 0.3
Minimum Boundary Dimension (r2s) mm - 0.3
Permissible Tilting Angle Degree (α) - 10
Minimum Mounting Dimension (da) mm - 19.5
Maximum Mounting Dimension (da) mm - 20.5
Maximum Mounting Dimension (Da) mm - 27.5
Minimum Mounting Dimension (Da) mm - 24.5
Dynamic Load Capacity (Cd) N - 24500
Static Load Capacity (Cs) N - 61300
Weight (kg) - 0.049

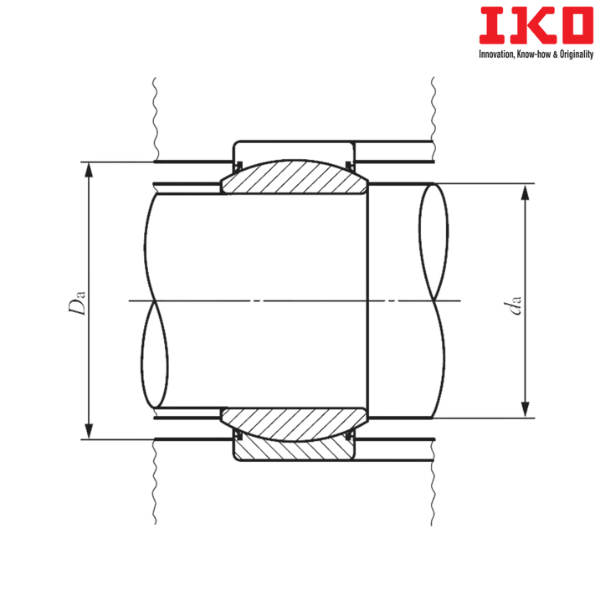

** Images are for representation purposes only
