GE 160ES-2RS IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - GE 160ES-2RS IKO
Also Known As - GE160ES-2RS
Category - Steel-on-Steel Spherical Bushing
Shaft Diameter (mm) - 160
Bore Diameter (d) mm - 160
Outer Diameter (D) mm - 230
Width (B) mm - 105
Boundary Dimension (C) mm - 80
Boundary Dimension (dk) mm - 200
Minimum Boundary Dimension (rs) mm - 1
Minimum Boundary Dimension (r2s) mm - 1
Permissible Tilting Angle Degree (α) - 8
Permissible Tilting Angle Degree (α1) - 6

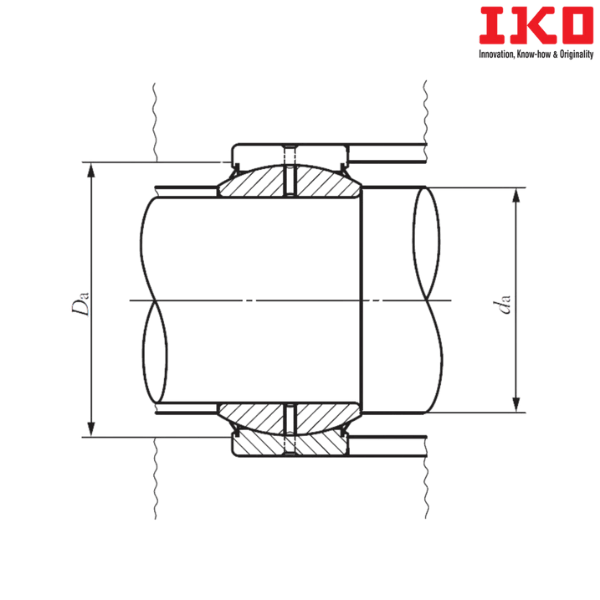

Minimum Mounting Dimension (da) mm - 165.5
Maximum Mounting Dimension (da) mm - 170
Maximum Mounting Dimension (Da) mm - 224.5
Minimum Mounting Dimension (Da) mm - 195
Dynamic Load Capacity (Cd) N - 1570000
Static Load Capacity (Cs) N - 9410000
Weight (kg) - 14.4
Spherical Plain Bearing without Seals - GE 160ES

Suffix Description Description :
ES - Split Outer Ring with Lubrication Holes

** Images are for representation purposes only
