GE 15GS IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - GE 15GS IKO
Also Known As - GE15GS
Category - Steel-on-Steel Spherical Bushing
Shaft Diameter (mm) - 15
Bore Diameter (d) mm - 15
Outer Diameter (D) mm - 30
Width (B) mm - 16
Boundary Dimension (C) mm - 10
Boundary Dimension (dk) mm - 25
Minimum Boundary Dimension (rs) mm - 0.3
Minimum Boundary Dimension (r2s) mm - 0.3
Permissible Tilting Angle Degree (α) - 16
Permissible Tilting Angle Degree (α1) - 13

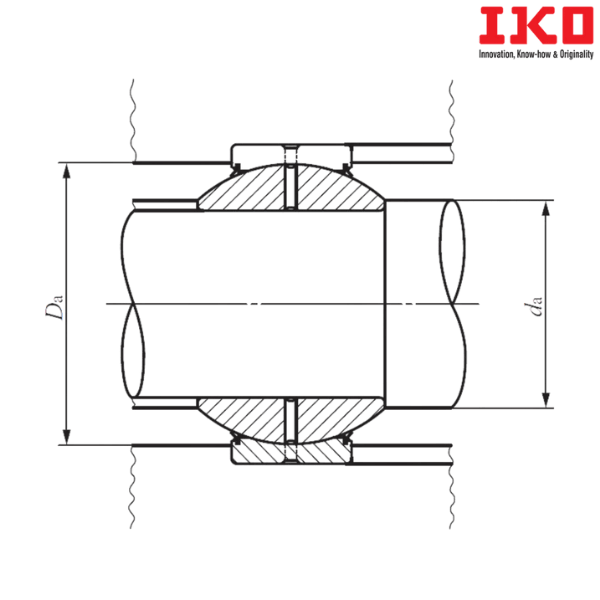

Minimum Mounting Dimension (da) mm - 17.5
Maximum Mounting Dimension (da) mm - 19
Maximum Mounting Dimension (Da) mm - 27.5
Minimum Mounting Dimension (Da) mm - 26
Dynamic Load Capacity (Cd) N - 24500
Static Load Capacity (Cs) N - 147000
Weight (kg) - 0.059
Spherical Plain Bearing with Seals - GE 15GS-2RS

** Images are for representation purposes only
