Description
Brand - RBC
Item Number - GE 15 MB RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - No Seal
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 15 mm
Outer Diameter (D) - 26 mm
Width (B) - 12 mm
Dimension (C) - 9 mm
Dimension (dk) - 22 mm
Minimum Dimension (R1) - 0.3 mm
Minimum Dimension (R2) - 0.3 mm
Dimension (a) - 8 mm
Basic Dynamic Load Rating (C) - 17 kN
Basic Static Load Rating (C0) - 85 kN
Weight - 0.025 kg

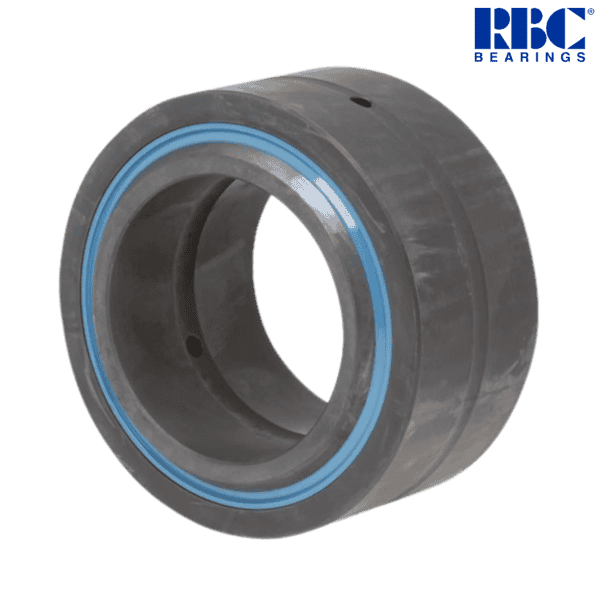

♦ ♦ Images are for representation purposes only
Item Number - GE 15 MB RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - No Seal
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 15 mm
Outer Diameter (D) - 26 mm
Width (B) - 12 mm
Dimension (C) - 9 mm
Dimension (dk) - 22 mm
Minimum Dimension (R1) - 0.3 mm
Minimum Dimension (R2) - 0.3 mm
Dimension (a) - 8 mm
Basic Dynamic Load Rating (C) - 17 kN
Basic Static Load Rating (C0) - 85 kN
Weight - 0.025 kg
♦ ♦ Images are for representation purposes only
