GE 12G IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - GE 12G IKO
Also Known As - GE12G
Category - Steel-on-Steel Spherical Bushing
Shaft Diameter (mm) - 12
Bore Diameter (d) mm - 12
Outer Diameter (D) mm - 26
Width (B) mm - 15
Boundary Dimension (C) mm - 9
Boundary Dimension (dk) mm - 22
Minimum Boundary Dimension (rs) mm - 0.3
Minimum Boundary Dimension (r2s) mm - 0.3
Permissible Tilting Angle Degree (α) - 18

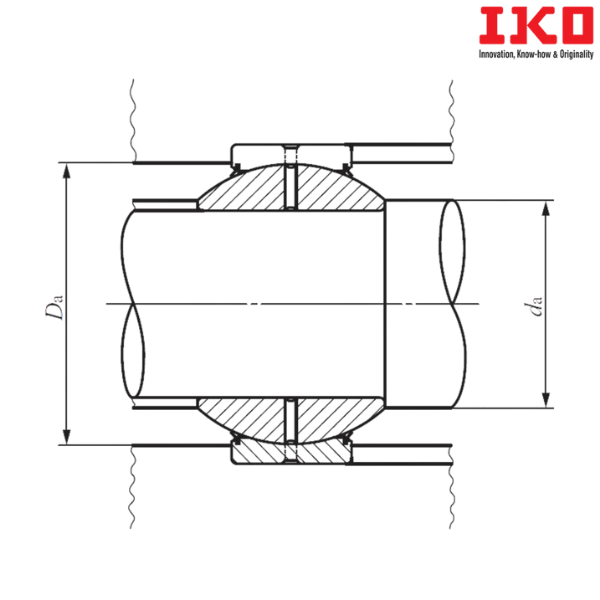

Minimum Mounting Dimension (da) mm - 14.5
Maximum Mounting Dimension (da) mm - 16
Maximum Mounting Dimension (Da) mm - 23.5
Minimum Mounting Dimension (Da) mm - 21
Dynamic Load Capacity (Cd) N - 19400
Static Load Capacity (Cs) N - 117000
Weight (kg) - 0.041

Suffix Description Description :
G - Steel-on-Steel and Oil Holes and Grooves

** Images are for representation purposes only
