Description
Brand - IKO
Item Number - GE 12E IKO
Also Known As - GE12E
Category - Steel-on-Steel Spherical Bushing
Shaft Diameter (mm) - 12
Bore Diameter (d) mm - 12
Outer Diameter (D) mm - 22
Width (B) mm - 10
Boundary Dimension (C) mm - 7
Boundary Dimension (dk) mm - 18
Minimum Boundary Dimension (rs) mm - 0.3
Minimum Boundary Dimension (r2s) mm - 0.3
Permissible Tilting Angle Degree (α) - 11

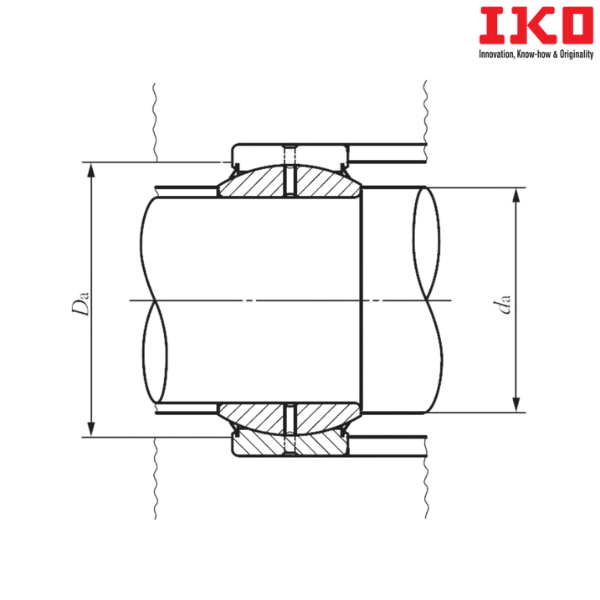

Minimum Mounting Dimension (da) mm - 14.5
Maximum Mounting Dimension (da) mm - 15
Maximum Mounting Dimension (Da) mm - 19.5
Minimum Mounting Dimension (Da) mm - 17
Dynamic Load Capacity (Cd) N - 12400
Static Load Capacity (Cs) N - 74100
Weight (kg) - 0.017
Suffix Description Description :
E - Split Outer Ring without Lubrication Holes
** Images are for representation purposes only
