Description
Brand - IKO
Item Number - GE 120ES IKO
Also Known As - GE120ES
Category - Steel-on-Steel Spherical Bushing
Shaft Diameter (mm) - 120
Bore Diameter (d) mm - 120
Outer Diameter (D) mm - 180
Width (B) mm - 85
Boundary Dimension (C) mm - 70
Boundary Dimension (dk) mm - 160
Minimum Boundary Dimension (rs) mm - 1
Minimum Boundary Dimension (r2s) mm - 1
Permissible Tilting Angle Degree (α) - 6
Permissible Tilting Angle Degree (α1) - 4

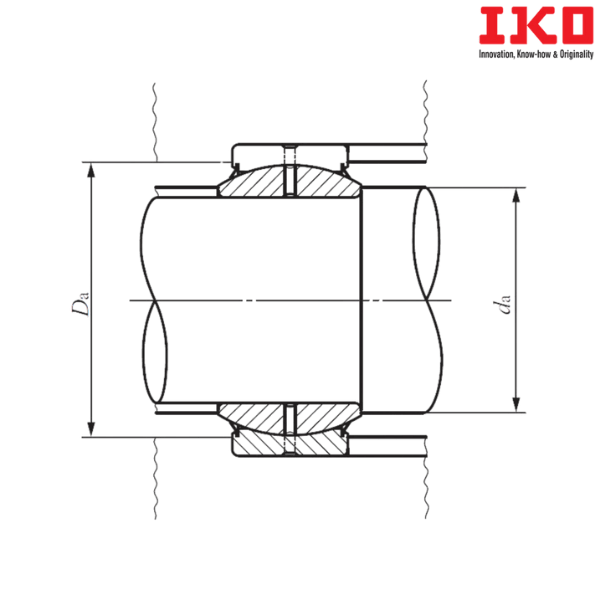

Minimum Mounting Dimension (da) mm - 125.5
Maximum Mounting Dimension (da) mm - 135.5
Maximum Mounting Dimension (Da) mm - 174.5
Minimum Mounting Dimension (Da) mm - 154
Dynamic Load Capacity (Cd) N - 1100000
Static Load Capacity (Cs) N - 6590000
Weight (kg) - 8.12
Spherical Plain Bearing with Seals - GE 120ES-2RS
Suffix Description Description :
ES - Split Outer Ring with Lubrication Holes
** Images are for representation purposes only
