Description

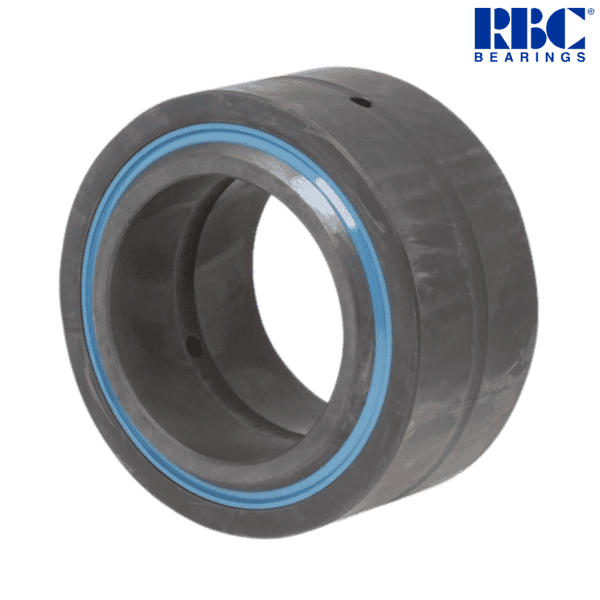

Brand - RBC
Item Number - GE 110 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 110 mm
Outer Diameter (D) - 160 mm
Width (B) - 70 mm
Dimension (C) - 55 mm
Dimension (dk) - 140 mm
Minimum Dimension (R1) - 1 mm
Minimum Dimension (R2) - 1 mm

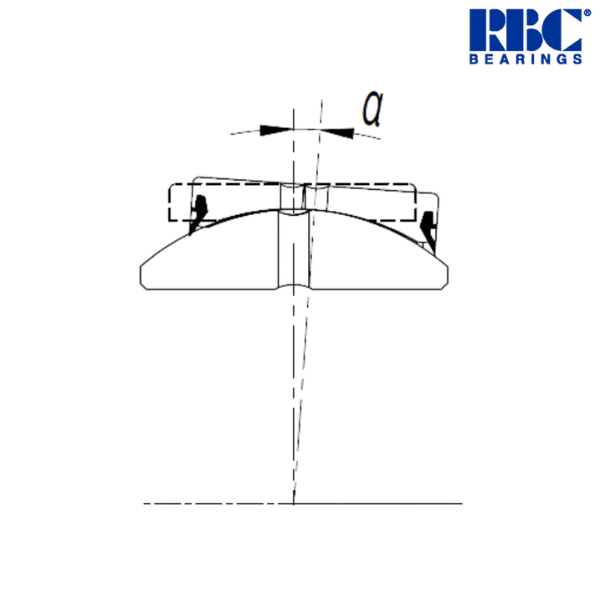

Dimension (a) - 6 mm
Basic Dynamic Load Rating (C) - 655 kN
Basic Static Load Rating (C0) - 3250 kN
Weight - 4.700 kg
Spherical Plain Bearing without Seals - GE 110 MB
♦ ♦ Images are for representation purposes only
Item Number - GE 110 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 110 mm
Outer Diameter (D) - 160 mm
Width (B) - 70 mm
Dimension (C) - 55 mm
Dimension (dk) - 140 mm
Minimum Dimension (R1) - 1 mm
Minimum Dimension (R2) - 1 mm
Dimension (a) - 6 mm
Basic Dynamic Load Rating (C) - 655 kN
Basic Static Load Rating (C0) - 3250 kN
Weight - 4.700 kg
Spherical Plain Bearing without Seals - GE 110 MB
♦ ♦ Images are for representation purposes only
