GE 10E IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - GE 10E IKO
Also Known As - GE10E
Category - Steel-on-Steel Spherical Bushing
Shaft Diameter (mm) - 10
Bore Diameter (d) mm - 10
Outer Diameter (D) mm - 19
Width (B) mm - 9
Boundary Dimension (C) mm - 6
Boundary Dimension (dk) mm - 16
Minimum Boundary Dimension (rs) mm - 0.3
Minimum Boundary Dimension (r2s) mm - 0.3
Permissible Tilting Angle Degree (α) - 12

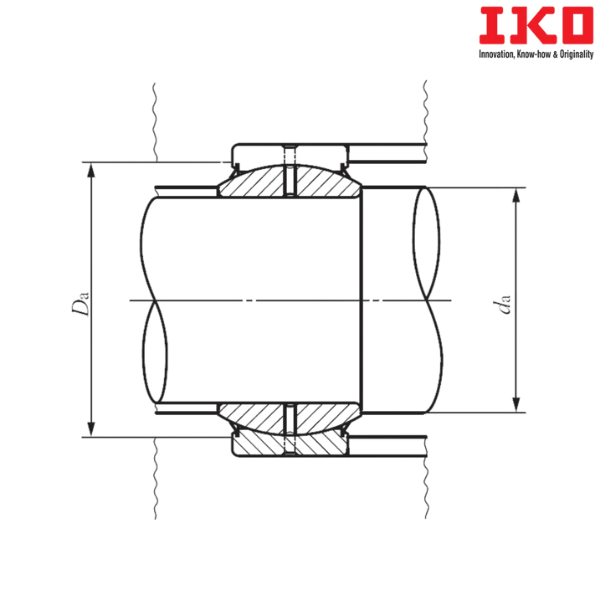

Minimum Mounting Dimension (da) mm - 12.5
Maximum Mounting Dimension (da) mm - 13
Maximum Mounting Dimension (Da) mm - 16.5
Minimum Mounting Dimension (Da) mm - 15.5
Dynamic Load Capacity (Cd) N - 9410
Static Load Capacity (Cs) N - 56500
Weight (kg) - 0.012

Suffix Description Description :
E - Split Outer Ring without Lubrication Holes

** Images are for representation purposes only
