Description

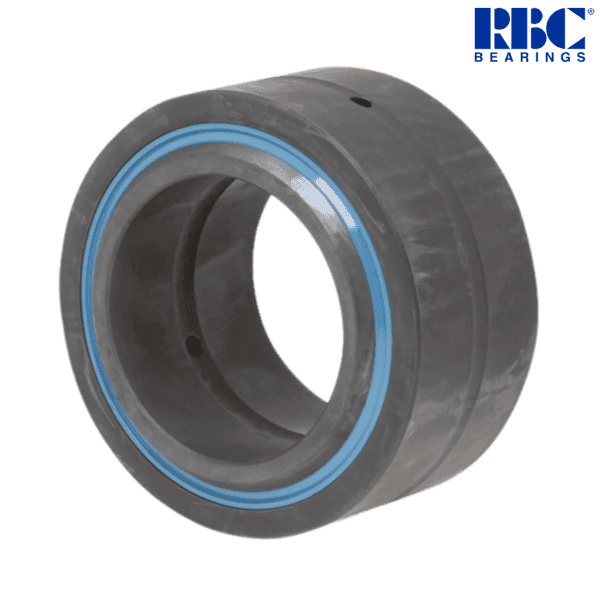

Brand - RBC
Item Number - GE 100 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 100 mm
Outer Diameter (D) - 150 mm
Width (B) - 70 mm
Dimension (C) - 55 mm
Dimension (dk) - 130 mm
Minimum Dimension (R1) - 1 mm
Minimum Dimension (R2) - 1 mm

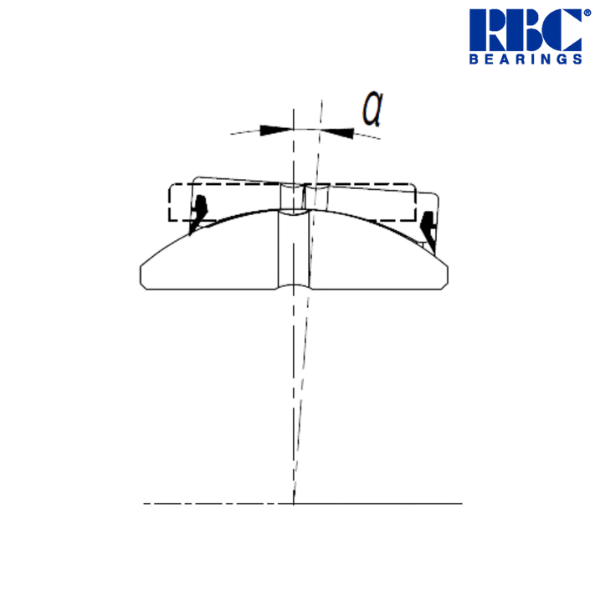

Dimension (a) - 7 mm
Basic Dynamic Load Rating (C) - 610 kN
Basic Static Load Rating (C0) - 3050 kN
Weight - 4.300 kg
Spherical Plain Bearing without Seals - GE 100 MB
♦ ♦ Images are for representation purposes only
Item Number - GE 100 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 100 mm
Outer Diameter (D) - 150 mm
Width (B) - 70 mm
Dimension (C) - 55 mm
Dimension (dk) - 130 mm
Minimum Dimension (R1) - 1 mm
Minimum Dimension (R2) - 1 mm
Dimension (a) - 7 mm
Basic Dynamic Load Rating (C) - 610 kN
Basic Static Load Rating (C0) - 3050 kN
Weight - 4.300 kg
Spherical Plain Bearing without Seals - GE 100 MB
♦ ♦ Images are for representation purposes only
