GD110XP0 RBC

Brand - RBC
Item Number - GD110XP0*RBC
Category - Sealed (Combo) 4-Point Contact, X-Type Thin Section Ball Bearing

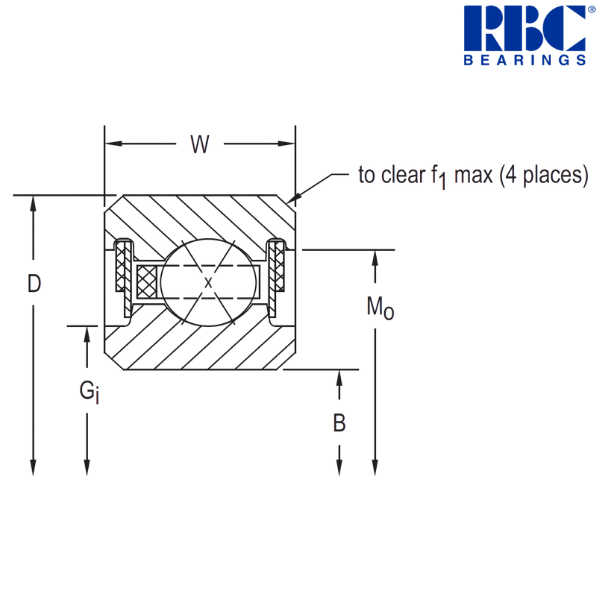

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 11 inch
Outside Diameter (D) - 12 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 11.25 inch
Groove Diameter (Mo) - 11.687 inch
Housing Fillet (f1) - 0.06 inch
Ball Diameter - 0.25 inch
Ball Quantity - 69 pcs.
Approximate Weight - 2.06 lbs
Radial Static Load - 7870 lbf
Radial Dynamic Load - 3981 lbf
Thrust Static Load - 19670 lbf
Thrust Dynamic Load - 6830 lbf
Moment Static Load - 45230 lbf
Moment Dynamic Load - 17173 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 279.4 mm
Outside Diameter (D) - 304.8 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 285.75 mm
Groove Diameter (Mo) - 296.85 mm
Housing Fillet (f1) - 1.52 mm
Approximate Weight - 0.934 kg
Radial Static Load - 35010 N
Radial Dynamic Load - 17710 N
Thrust Static Load - 87500 N
Thrust Dynamic Load - 30380 N
Moment Static Load - 5110 Nm
Moment Dynamic Load - 1940 Nm

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
D - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
