GD060CP0 RBC

Brand - RBC
Item Number - GD060CP0*RBC
Category - Sealed (Combo) Radial Contact, C-Type Thin Section Ball Bearing

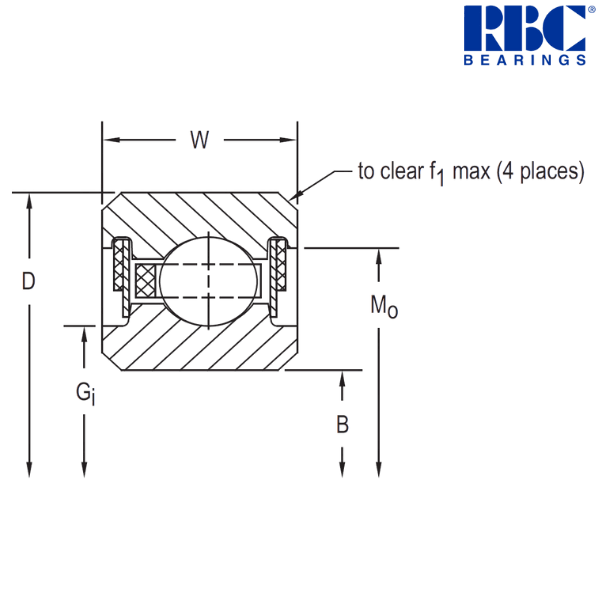

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 6 inch
Outside Diameter (D) - 7 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 6.25 inch
Groove Diameter (Mo) - 6.687 inch
Housing Fillet (f1) - 0.06 inch
Ball Diameter - 0.25 inch
Ball Quantity - 39 pcs.
Approximate Weight - 1.16 lbs
Radial Static Load - 4450 lbf
Radial Dynamic Load - 2580 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 152.4 mm
Outside Diameter (D) - 177.8 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 158.75 mm
Groove Diameter (Mo) - 169.85 mm
Housing Fillet (f1) - 1.52 mm
Approximate Weight - 0.526 kg
Radial Static Load - 19790 N
Radial Dynamic Load - 11480 N

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
D - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.

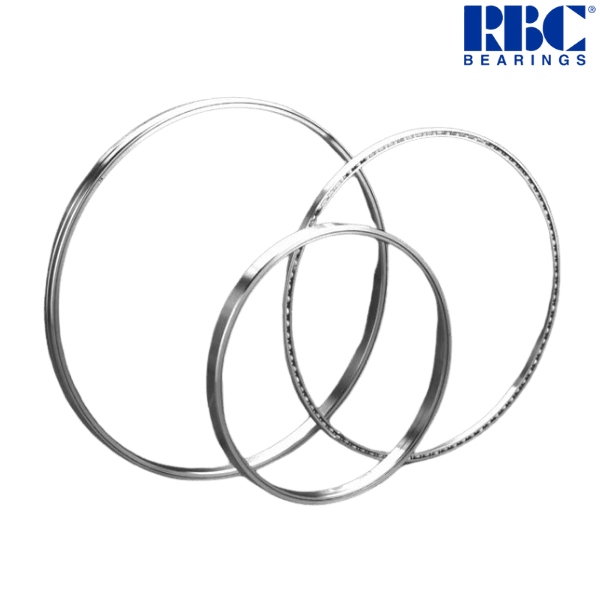

♦ ♦ Images are for representation purposes only
