GCURL 85 NADELLA

Brand - NADELLA
Item Number - GCURL 85 NADELLA
Category - Eccentric Cam Followers with Threaded Stud and Cylindrical Outer Ring
Also Known As - GCURL85

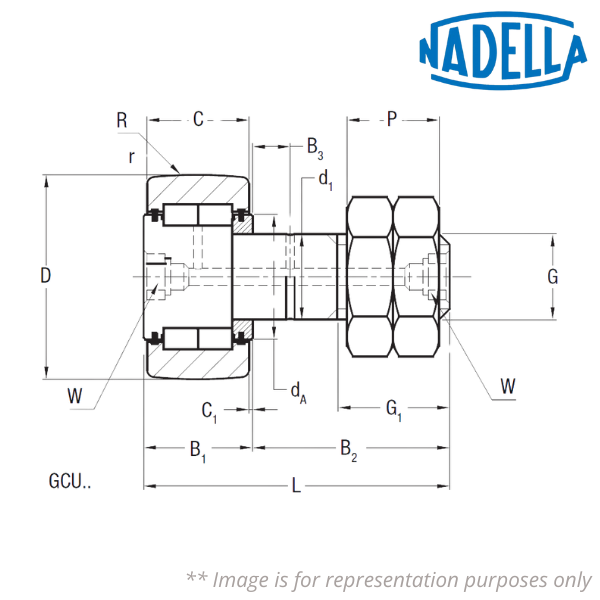

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 85 mm
Hole Diameter (d1) - 30 mm
Dimension (L) - 100 mm
Dimension (B1) - 37 mm
Dimension (B2) - 63 mm
Threading (G) - M30x1.5
Dimension (G1) - 32 mm
Dimension (C) - 35 mm
Dimension (C1) - 1 mm
Dimension (dA) - 51.8 mm
Dimension (B3) - 15 mm
Dimension(r) - 1.1 mm
Convex Radius (R) * - 800 mm
Dimension (W) - 14 mm
Dimension (P) - 30 mm
Dimension of Eccentric Bearing (de) ** - 42 mm
Dimension of Eccentric Bearing (k) *** - 3 mm
Dimension of Eccentric Bearing (M) *** - 50 mm
Dimension of Eccentric Bearing (Be) *** - 27 mm
Dimension of Eccentric Bearing (Pe) *** - 20.6 mm
Load Coefficient (Cw) - 80000 N
Dynamic Load Coefficient (Fr) **** - 50000 N
Static Load Coefficient (For) **** - 93000 N
Speed Limit with Grease - 1050 RPM
Weight of Nut and Washers - 2.23 kg
Clamping Torque - 450 Nm

Description of Prefix:
GCURL - Eccentric cam follower with stud and cylindrical outer ring

Other salient points to be noted:
* Convex radius in the standard version GCU

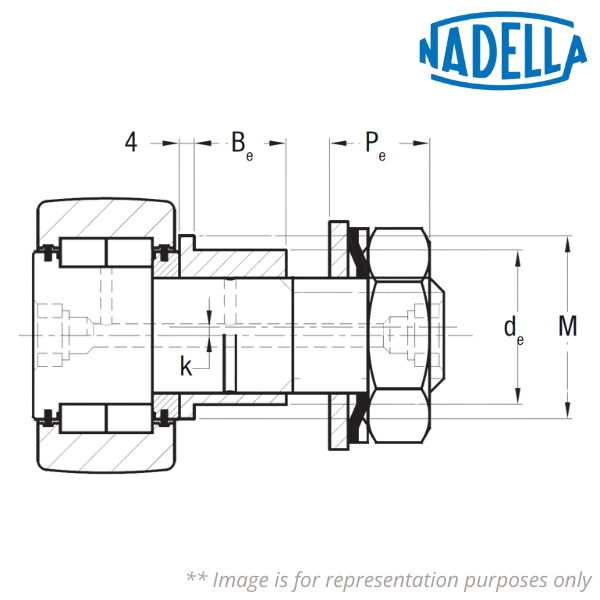

** Hole diameter for assembly of the eccentric cam follower without stud: de H7. Dimension of the pivot with eccentric collar
*** Dimensions of the pivot with eccentric collar
**** Fr and For load for cam follower without stud and no eccentric collar
