GCURL 47 MM NADELLA

Brand - NADELLA
Item Number - GCURL 47 MM NADELLA
Category - Eccentric Cam Followers with Threaded Stud and Cylindrical Outer Ring
Also Known As - GCURL47MM

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 47 mm
Hole Diameter (d1) - 20 mm
Dimension (L) - 66 mm
Dimension (B1) - 25.6 mm
Dimension (B2) - 40.5 mm
Threading (G) - M20x1.5
Dimension (G1) - 21 mm
Dimension (C) - 24 mm
Dimension (C1) - 0.8 mm
Dimension (dA) - 33.6 mm
Dimension (B3) - 9 mm
Dimension(r) - 1 mm
Convex Radius (R) * - 500 mm
Dimension (W) - 10 mm
Dimension (P) - 20 mm

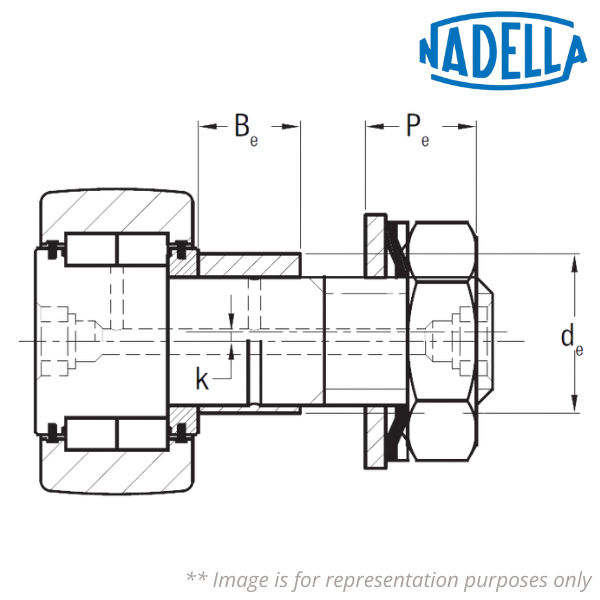

Dimension of Eccentric Bearing (de) ** - 27 mm
Dimension of Eccentric Bearing (k) *** - 2 mm
Dimension of Eccentric Bearing (Be) *** - 17.5 mm
Dimension of Eccentric Bearing (Pe) *** - 14.4 mm
Load Coefficient (Cw) - 26000 N
Dynamic Load Coefficient (Fr) **** - 18000 N
Static Load Coefficient (For) **** - 28000 N
Speed Limit with Grease - 1650 RPM
Weight of Nut and Washers - 0.5 kg
Clamping Torque - 120 Nm

Description of Suffixed and Prefixes:
GCURL - Eccentric cam follower with stud and cylindrical outer ring
MM - With metal guards

Other salient points to be noted:
* Convex radius in the standard version GCU
** Hole diameter for assembly of the eccentric cam follower without stud: de H7. Dimension of the pivot with eccentric collar
*** Dimensions of the pivot with eccentric collar
**** Fr and For load for cam follower without stud and no eccentric collar

♦♦ Images are for representation purposes only
