GCURL 130 MM NADELLA

Brand - NADELLA
Item Number - GCURL 130 MM NADELLA
Category - Eccentric Cam Followers with Threaded Stud and Cylindrical Outer Ring
Also Known As - GCURL130MM

Principal Dimensions & Load Ratings (Metric):

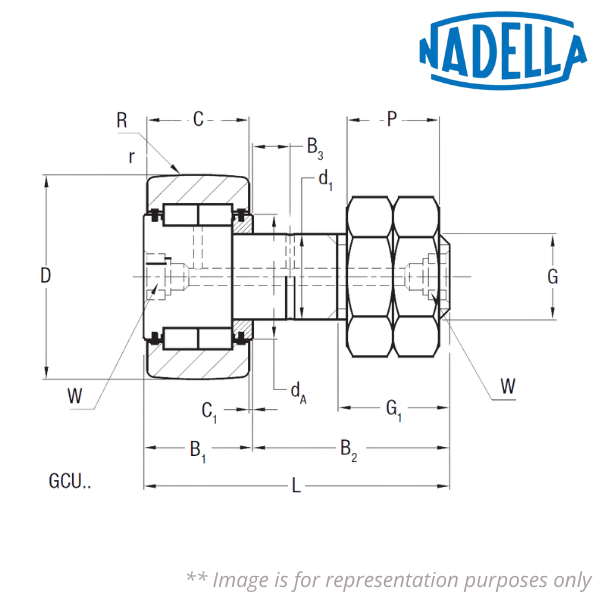

Outer Diameter (D) - 130 mm
Hole Diameter (d1) - 42 mm
Dimension (L) - 136 mm
Dimension (B1) - 48 mm
Dimension (B2) - 88 mm
Threading (G) - M42x3
Dimension (G1) - 44 mm
Dimension (C) - 46 mm
Dimension (C1) - 1 mm
Dimension (dA) - 71 mm
Dimension (B3) - 24 mm
Dimension(r) - 2 mm
Convex Radius (R) * - 1200 mm
Dimension (W) - 19 mm
Dimension (P) - 42 mm
Dimension of Eccentric Bearing (de) ** - 54 mm
Dimension of Eccentric Bearing (k) *** - 3 mm
Dimension of Eccentric Bearing (M) *** - 62 mm
Dimension of Eccentric Bearing (Be) *** - 39 mm
Dimension of Eccentric Bearing (Pe) *** - 26.8 mm
Load Coefficient (Cw) - 150000 N
Dynamic Load Coefficient (Fr) **** - 110000 N
Static Load Coefficient (For) **** - 190000 N
Speed Limit with Grease - 760 RPM
Weight of Nut and Washers - 5.59 kg
Clamping Torque - 1200 Nm

Description of Suffixed and Prefixes:
GCURL - Eccentric cam follower with stud and cylindrical outer ring
MM - With metal guards

Other salient points to be noted:
* Convex radius in the standard version GCU

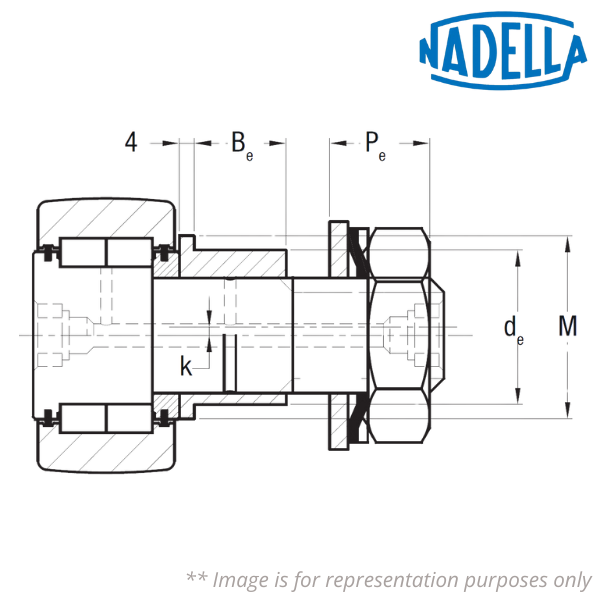

** Hole diameter for assembly of the eccentric cam follower without stud: de H7. Dimension of the pivot with eccentric collar
*** Dimensions of the pivot with eccentric collar
**** Fr and For load for cam follower without stud and no eccentric collar

♦♦ Images are for representation purposes only
