GCUR 35 NADELLA

Brand - NADELLA
Item Number - GCUR 35 NADELLA
Category - Eccentric Cam Followers with Threaded Stud and Crowned Outer Ring
Also Known As - GCUR35

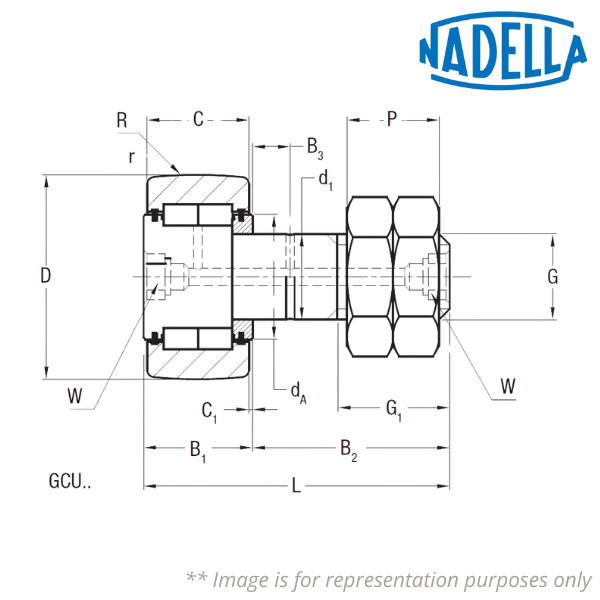

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 35 mm
Hole Diameter (d1) - 16 mm
Dimension (L) - 52 mm
Dimension (B1) - 19.6 mm
Dimension (B2) - 32.5 mm
Threading (G) - M16x1.5
Dimension (G1) - 17 mm
Dimension (C) - 18 mm
Dimension (C1) - 0.8 mm
Dimension (dA) - 26 mm
Dimension (B3) - 8 mm
Dimension (r) - 0.6 mm
Convex Radius (R) * - 320 mm
Dimension (W) - 8 mm
Dimension (P) - 16 mm
Dimension of Eccentric Bearing (de) ** - 21 mm
Dimension of Eccentric Bearing (k) *** - 1.5 mm
Dimension of Eccentric Bearing (Be) *** - 14 mm
Dimension of Eccentric Bearing (Pe) *** - 12.2 mm
Load Coefficient (Cw) - 14000 N
Dynamic Load Coefficient (Fr) **** - 8100 N
Static Load Coefficient (For) **** - 13000 N
Speed Limit with Grease - 2200 RPM
Weight of Nut and Washers - 0.215 kg
Clamping Torque - 64 Nm

Description of Prefix:
GCUR - Eccentric cam follower with stud and convex outer ring

Other salient points to be noted:
* Convex radius in the standard version GCU
** Hole diameter for assembly of the eccentric cam follower without stud: de H7. Dimension of the pivot with eccentric collar
*** Dimensions of the pivot with eccentric collar
**** Fr and For load for cam follower without stud and no eccentric collar
