GCUR 100 MM NADELLA

Brand - NADELLA
Item Number - GCUR 100 MM NADELLA
Category - Eccentric Cam Followers with Threaded Stud and Crowned Outer Ring
Also Known As - GCUR100MM

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 100 mm
Hole Diameter (d1) - 36 mm
Dimension (L) - 117 mm
Dimension (B1) - 42 mm
Dimension (B2) - 75 mm
Threading (G) - M36x3
Dimension (G1) - 38 mm
Dimension (C) - 40 mm
Dimension (C1) - 1 mm
Dimension (dA) - 61 mm
Dimension (B3) - 20 mm
Dimension (r) - 2 mm
Convex Radius (R) * - 1000 mm
Dimension (W) - 17 mm
Dimension (P) - 36 mm

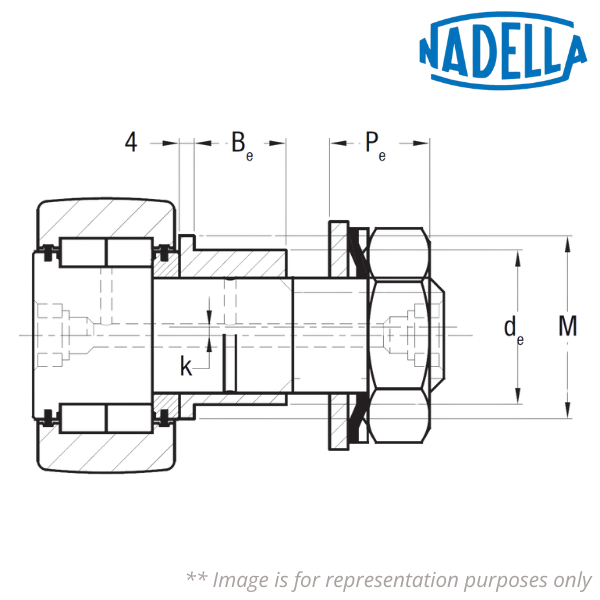

Dimension of Eccentric Bearing (de) ** - 48 mm
Dimension of Eccentric Bearing (k) *** - 3 mm
Dimension of Eccentric Bearing (M) *** - 56 mm
Dimension of Eccentric Bearing (Be) *** - 32 mm
Dimension of Eccentric Bearing (Pe) *** - 24.6 mm
Load Coefficient (Cw) - 110000 N
Dynamic Load Coefficient (Fr) **** - 76000 N
Static Load Coefficient (For) **** - 130000 N
Speed Limit with Grease - 890 RPM
Weight of Nut and Washers - 3.38 kg
Clamping Torque - 740 Nm

Description of Suffixes and Prefixes:
GCUR - Eccentric cam follower with stud and convex outer ring
MM - With metal guards

Other salient points to be noted:
* Convex radius in the standard version GCU
** Hole diameter for assembly of the eccentric cam follower without stud: de H7. Dimension of the pivot with eccentric collar
*** Dimensions of the pivot with eccentric collar
**** Fr and For load for cam follower without stud and no eccentric collar

♦♦ Images are for representation purposes only
