GCUL 80 NADELLA

Brand - NADELLA
Item Number - GCUL 80 NADELLA
Category - Cam Followers with Threaded Stud and Cylindrical Outer Ring
Also Known As - GCUL80

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 80 mm
Hole diameter for assembly of concentric cam follower without stud (d1) - 30 mm
Dimension (L) - 100 mm
Dimension (B1) - 37 mm
Dimension (B2) - 63 mm
Threading (G) - M30x1.5
Dimension (G1) - 32 mm
Dimension (C) - 35 mm
Dimension (C1) - 1 mm
Dimension (dA) - 51.8 mm
Dimension (B3) - 15 mm
Dimension (r) - 1.1 mm
Convex Radius (R) * - 800 mm
Dimension (W) - 14 mm
Dimension (P) - 30 mm
Load Coefficient (Cw) - 70000 N
Dynamic Load Coefficient (Fr) ** - 50000 N
Static Load Coefficient (For) ** - 82000 N
Speed Limit with Grease - 1050 RPM
Weight of Nut and Washers - 2.07 kg
Clamping Torque - 450 Nm

Description of Prefix:
GCUL - Concentric cam follower with stud and cylindrical outer ring

Other salient points to be noted:
* Convex radius in the standard version GCU
** Fr and For load for cam follower without stud and no eccentric collar

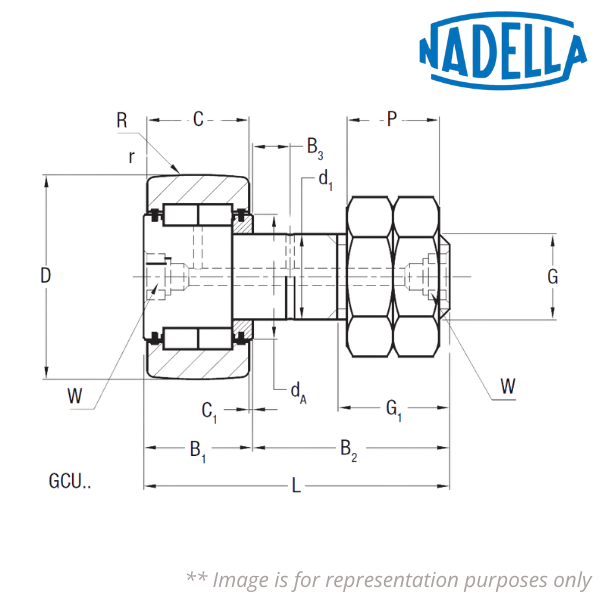

♦♦ Images are for representation purposes only
