GCUL 62 MM NADELLA

Brand - NADELLA
Item Number - GCUL 62 MM NADELLA
Category - Cam Followers with Threaded Stud and Cylindrical Outer Ring
Also Known As - GCUL62MM

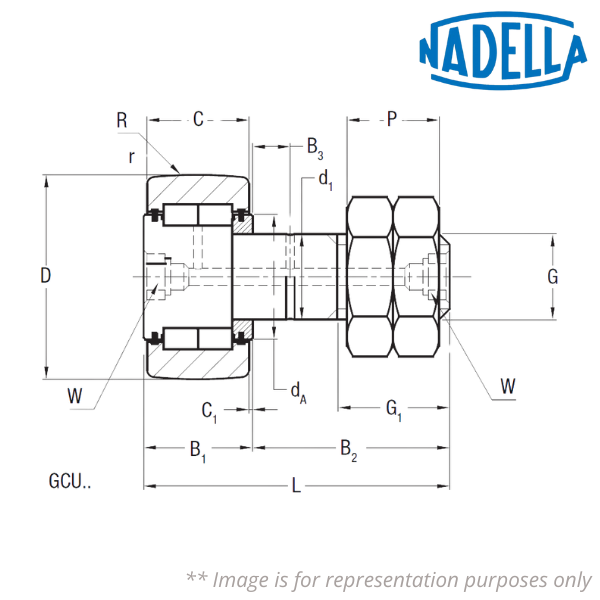

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 62 mm
Hole diameter for assembly of concentric cam follower without stud (d1) - 24 mm
Dimension (L) - 80 mm
Dimension (B1) - 30.6 mm
Dimension (B2) - 49.5 mm
Threading (G) - M24x1.5
Dimension (G1) - 25 mm
Dimension (C) - 29 mm
Dimension (C1) - 0.8 mm
Dimension (dA) - 38.9 mm
Dimension (B3) - 11 mm
Dimension (r) - 1 mm
Convex Radius (R) * - 640 mm
Dimension (W) - 14 mm
Dimension (P) - 24 mm
Load Coefficient (Cw) - 48000 N
Dynamic Load Coefficient (Fr) ** - 31000 N
Static Load Coefficient (For) ** - 57000 N
Speed Limit with Grease - 1400 RPM
Weight of Nut and Washers - 1.035 kg
Clamping Torque - 220 Nm

Description of Prefix:
GCUL - Concentric cam follower with stud and cylindrical outer ring
MM - With metal guards

Other salient points to be noted:
* Hole diameter for assembly of the eccentric cam follower without stud: de H7
** Fr and For load for cam follower without stud and no eccentric collar

♦♦ Images are for representation purposes only
