GCUL 120 NADELLA

Brand - NADELLA
Item Number - GCUL 120 NADELLA
Category - Cam Followers with Threaded Stud and Cylindrical Outer Ring
Also Known As - GCUL120

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 120 mm
Hole diameter for assembly of concentric cam follower without stud (d1) - 42 mm
Dimension (L) - 136 mm
Dimension (B1) - 48 mm
Dimension (B2) - 88 mm
Threading (G) - M42x3
Dimension (G1) - 44 mm
Dimension (C) - 46 mm
Dimension (C1) - 1 mm
Dimension (dA) - 71 mm
Dimension (B3) - 24 mm
Dimension (r) - 2 mm
Convex Radius (R) * - 1200 mm
Dimension (W) - 19 mm
Dimension (P) - 42 mm
Load Coefficient (Cw) - 140000 N
Dynamic Load Coefficient (Fr) ** - 110000 N
Static Load Coefficient (For) ** - 170000 N
Speed Limit with Grease - 760 RPM
Weight of Nut and Washers - 5.1 kg
Clamping Torque - 1200 Nm

Description of Prefix:
GCUL - Concentric cam follower with stud and cylindrical outer ring

Other salient points to be noted:
* Convex radius in the standard version GCU
** Fr and For load for cam follower without stud and no eccentric collar

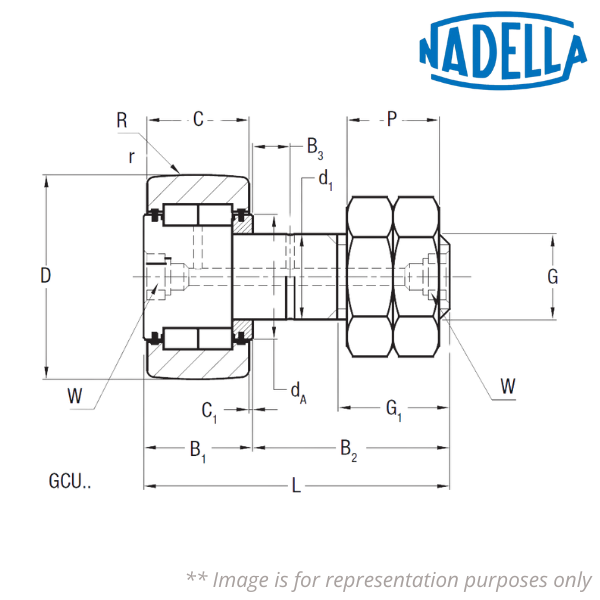

♦♦ Images are for representation purposes only
