GCU 110 NADELLA

Brand - NADELLA
Item Number - GCU 110 NADELLA
Category - Cam Followers with Threaded Stud and Crowned Outer Ring
Also Known As - GCU110

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 110 mm
Hole diameter for assembly of concentric cam follower without stud (d1) - 36 mm
Dimension (L) - 117 mm
Dimension (B1) - 42 mm
Dimension (B2) - 75 mm
Threading (G) - M36x3
Dimension (G1) - 38 mm
Dimension (C) - 40 mm
Dimension (C1) - 1 mm
Dimension (dA) - 61 mm
Dimension (B3) - 20 mm
Dimension (r) - 2 mm
Convex Radius (R) - 1000 mm
Dimension (W) - 17 mm
Dimension (P) *** - 36 mm
Load Coefficient (Cw) - 120000 N
Dynamic Load Coefficient (Fr) ** - 76000 N
Static Load Coefficient (For) ** - 140000 N
Speed Limit with Grease - 890 RPM
Weight of Nut and Washers - 3.86 kg
Clamping Torque - 740 Nm

Description of Prefix:
GCU - Concentric cam follower with stud and convex outer ring

Other salient points to be noted:
* Convex radius in the standard version GCU
** Fr and For load for cam follower without stud and no eccentric collar
*** The GCU concentric cam followers with stud are supplied with double clamping nut

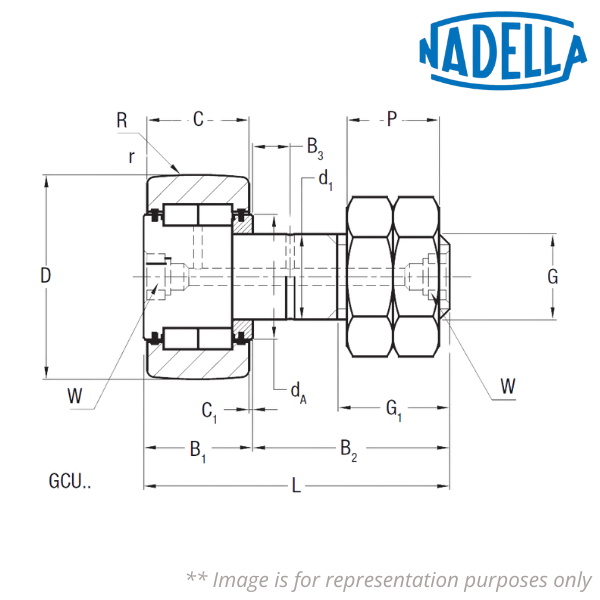

♦♦ Images are for representation purposes only
